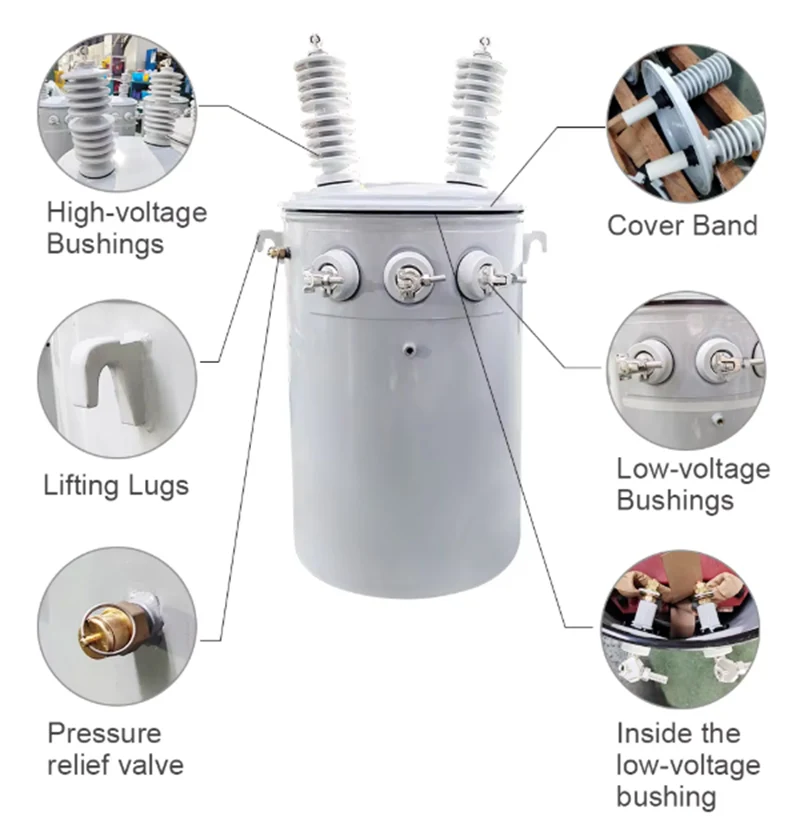

As the professional manufacturer, we would like to provide you JUCEG Single Phase Pole Mounted Oil Transformer. And we will offer you the best after-sale service and timely delivery.The single-phase design is small in size and light in weight. It can be directly installed on poles and can reach the load center, shortening the low-voltage power supply radius and reducing line losses. The capacity range is usually from 5kVA to 500kVA, covering residential areas, small factories and commercial areas. Transformer oil is used as the insulation and cooling medium, with excellent heat dissipation performance, strong overload capacity and low cost. The fully sealed corrugated oil tank design isolates air and moisture, preventing insulation aging and prolonging service life, with low maintenance costs. The core is made of high-quality cold-rolled silicon steel sheets to reduce no-load losses and noise. The winding structure is optimized, with low leakage flux, high mechanical strength and strong anti-short-circuit ability. The amorphous alloy core is used to further reduce losses and achieve significant energy-saving effects. Single Phase Pole Mounted Oil Transformer complies with international and domestic standards such as IEC, ANSI, and GB, and has functions such as overload protection and short-circuit protection. It has a high protection level and can adapt to harsh environments (such as high temperature, high humidity, and salt fog).
Rated capacity: 5kVA, 10kVA, 25kVA, 37.5kVA, 50kVA, 75kVA, 100kVA, 167kVA, etc.
Voltage levels:
High-voltage side: 7.62kV, 13.2kV, 19.92kV, 34.5kV, etc.
Low-voltage side: 120V/240V, 240V/480V, 347V, 600V, etc.
Frequency: 50Hz or 60Hz.
Cooling method: Oil-immersed self-cooling (ONAN).
Insulation class: F class or H class.
Protection class: IP23 or higher.

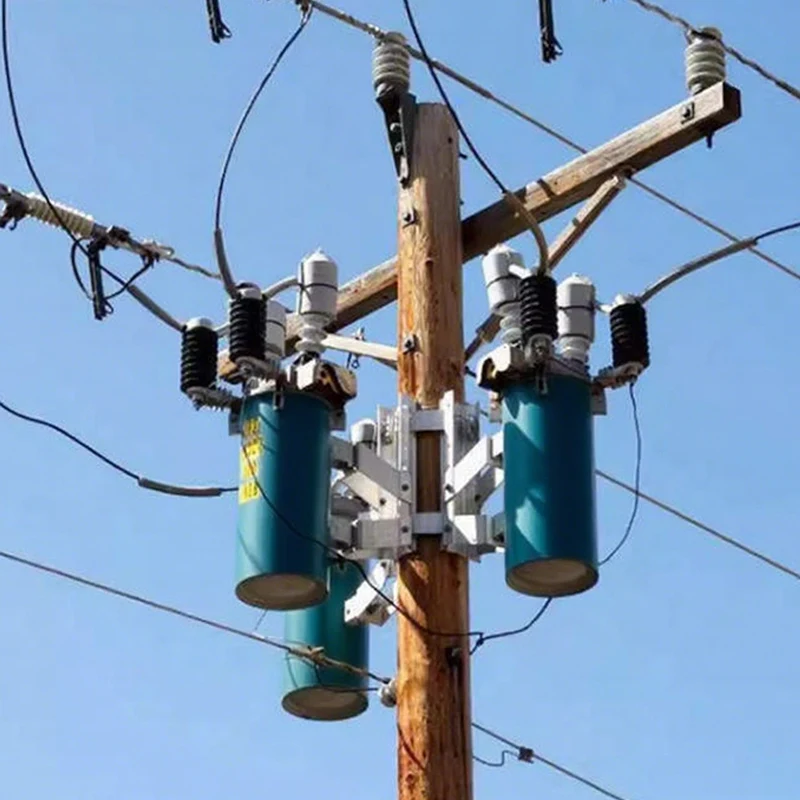

Suitable for scenarios such as scattered residential areas, farmland irrigation, and mountain area power supply, to solve the problems of high transmission loss and unstable voltage over long distances. In the urban outskirts or newly developed areas, it can be used as the terminal distribution equipment to reduce voltage and supply power nearby, improving power supply reliability. Single Phase Pole Mounted Oil Transformer is suitable for areas with non-concentrated three-phase loads such as commercial centers and small factories. In scenarios like distributed photovoltaic and wind power, it can be used as an in-grid transformer to regulate voltage fluctuations and ensure power quality. The Pole Mounted Oil Transformer supports smart grid construction and integrates monitoring modules to achieve remote data collection and fault alarm. In scenarios such as disaster relief and temporary activities, rapid deployment is required to provide stable power support.
