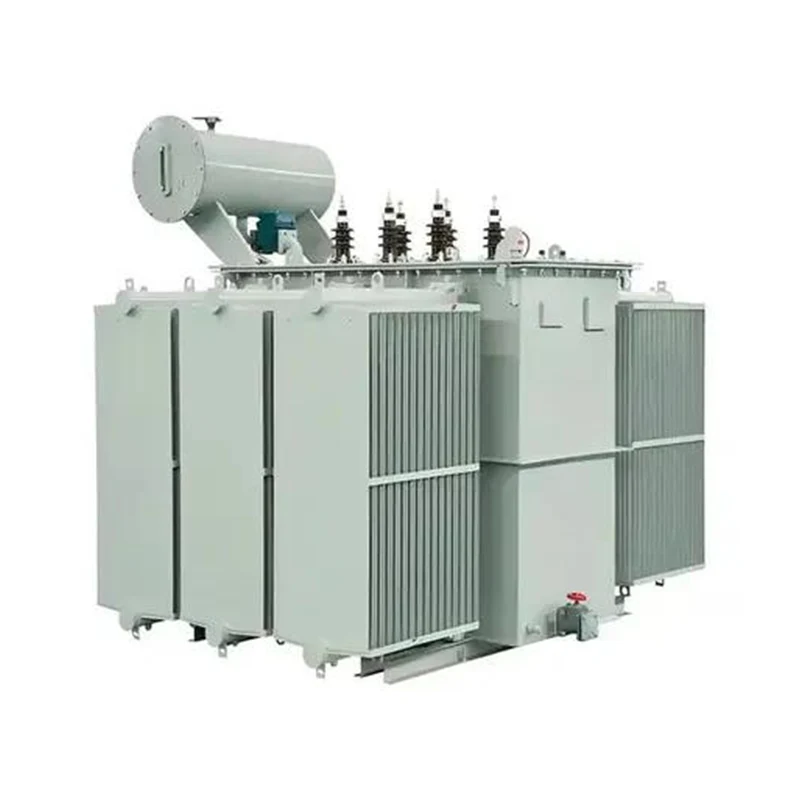

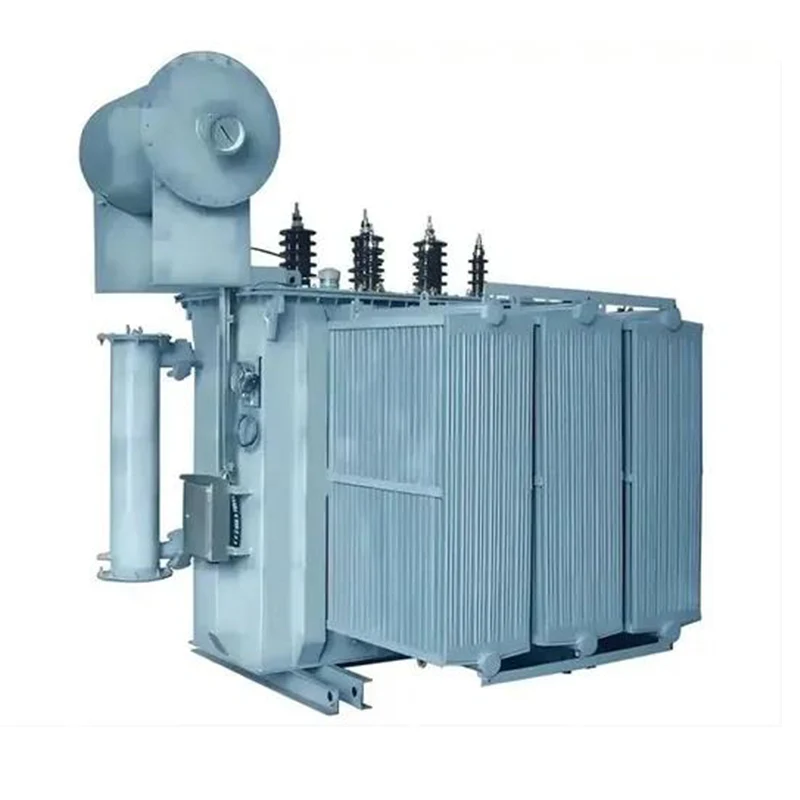

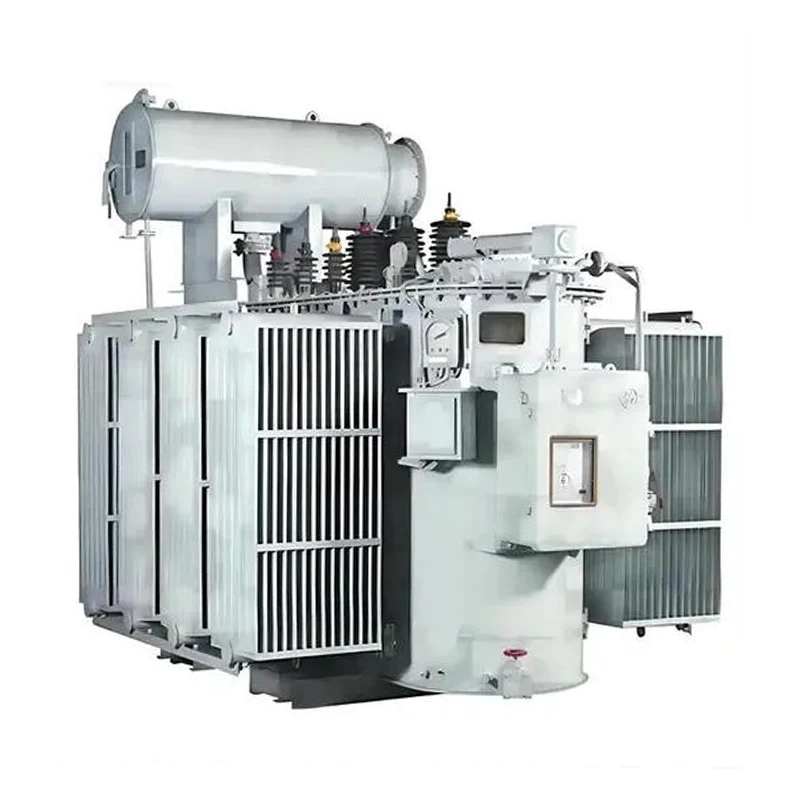

As a professional high quality JUCEG Amorphous Alloy Core Oil Immersed Transformer manufacturer,we will offer you the best after-sale service.Amorphous alloys are made by rapidly cooling iron, boron, silicon and other elements. The atomic arrangement is disordered, and they possess high saturation magnetic induction, low coercivity and high resistivity. The magnetization and demagnetization processes consume extremely low energy. The iron core of Amorphous Alloy Core Oil Immersed Transformer adopts a single-frame or three-phase five-column winding structure, with high mechanical strength and excellent seismic performance. The oil-immersed design uses the circulation of transformer oil to remove heat, with high heat dissipation efficiency and the ability to meet the requirements of full-load operation. The corrugated oil tank structure increases the heat dissipation area and simultaneously enhances mechanical strength, adapting to harsh environments. All products are equipped with temperature sensors, online monitoring systems for oil level and oil temperature, and the data can be remotely transmitted, enabling fault warning and intelligent management.
Amorphous alloys are a new generation of energy-saving materials. Their atoms are arranged in an unordered, amorphous structure, which enhances the efficiency of magnetization and demagnetization. The iron chips are extremely thin - only about 0.025 millimeters, much thinner than traditional silicon steel sheets. When used in transformers, amorphous alloy cores have high saturation magnetic induction, low loss, low excitation current, and stable temperature performance. Amorphous metal transformers have low no-load losses, excellent short-circuit resistance, advanced structural design, energy-saving performance, and significant environmental benefits, making Amorphous Alloy Core Oil Immersed Transformer one of the best solutions for modern energy-saving power systems.
|
Rated capacity (kVA) |
Voltagegroup |
Vectorgroup |
Loss (W) |
No-load current(%) |
Impedance voltage (%) |
Boundary dimensior (L×W×H,mm) |
Weight(kg) |
||
|
HV (kV) |
LV(kV) |
No-loadloss(W) |
Loadloss(W) |
||||||
|
30 |
11 10.5 10 6.3 6 |
0.4 |
Dyn11 or Yyn0 |
33 |
600 |
1.5 |
4 |
920×850×830 |
410 |
|
50 |
43 |
870 |
1.2 |
1040×780×870 |
520 |
||||
|
63 |
50 |
1040 |
1.1 |
1010×810×880 |
570 |
||||
|
80 |
60 |
1250 |
1.0 |
1060×830×910 |
640 |
||||
|
100 |
75 |
1500 |
0.9 |
1140×830×860 |
750 |
||||
|
125 |
85 |
1800 |
0.8 |
1110×880×950 |
830 |
||||
|
160 |
100 |
2200 |
0.6 |
1130×880×1000 |
940 |
||||
|
200 |
120 |
2600 |
0.6 |
1240×900×1020 |
1090 |
||||
|
250 |
140 |
3050 |
0.6 |
1290×900×1070 |
1250 |
||||
|
315 |
170 |
3650 |
0.5 |
1380×840×1110 |
1470 |
||||
|
400 |
200 |
4300 |
0.5 |
1420×920×1250 |
1710 |
||||
|
500 |
240 |
5150 |
0.5 |
4.5 |
1360×1040×1180 |
1990 |
|||
|
630 |
320 |
6200 |
0.3 |
1530×1120×1310 |
2390 |
||||
|
800 |
380 |
7500 |
0.3 |
1880×1210×1360 |
2760 |
||||
|
1000 |
450 |
10300 |
0.3 |
2040×1520×1360 |
3240 |
||||
|
1250 |
530 |
12000 |
0.2 |
2140×1520×1430 |
3820 |
||||
|
1600 |
630 |
14500 |
0.2 |
2260×1540×1500 |
4620 |
||||
