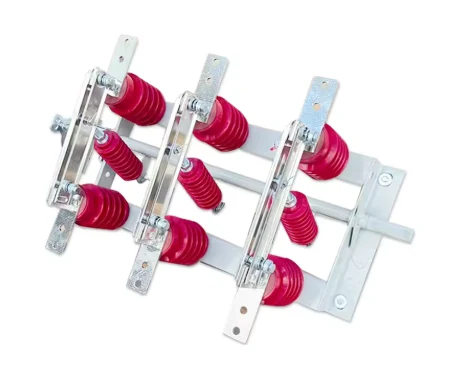

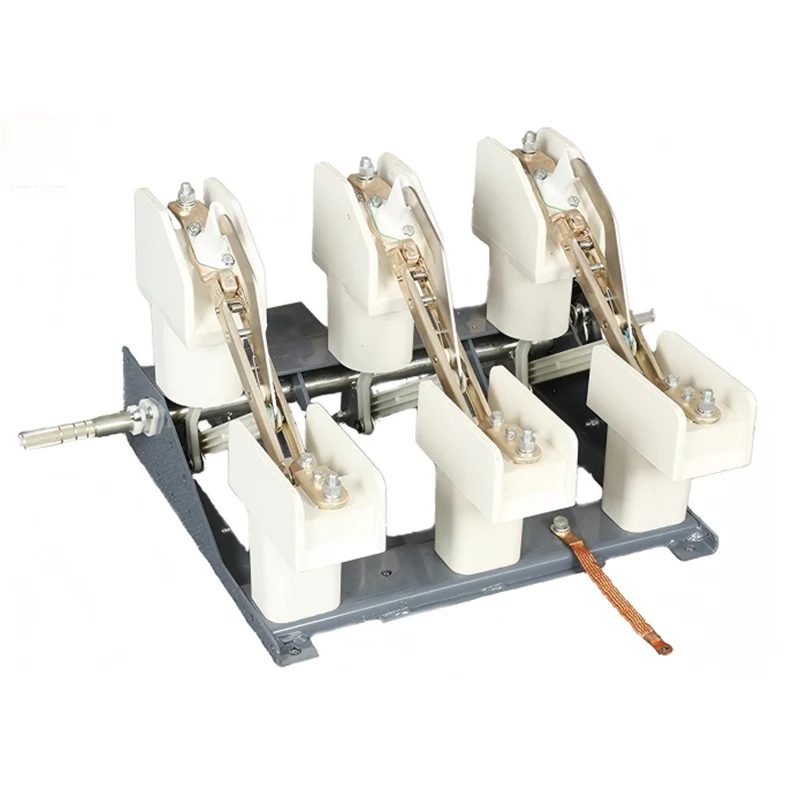

Our 24KV indoor disconnect switch is extensively utilized across a variety of indoor electrical environments, including indoor power distribution cabinets, distribution substations, industrial power supply systems, and commercial power transmission projects.By incorporating an optimized insulation structure and robust, high-quality conductive components,the 24KV Indoor Type Disconnect Switch demonstrates exceptional mechanical stability, highly reliable breaking performance, and outstanding safety protection, even under prolonged and demanding operational conditions. Through stringent raw material inspections and adherence to a standardized, rigorous production process within our manufacturing facility, every unit produced consistently meets and exceeds established international industry standards.
|
Indoor high-voltage disconnector Model |
Rated voltage (kV) |
Maximum voltage (kV) |
Rated current (A) |
4S thermal stable current (kA) |
Dynamic stable current (kA) |
|
GN19-12/400-12.5 |
12 |
12.5 |
400 |
12.5 |
31.5 |
|
GN19-12/630-20 |
12 |
12.5 |
630 |
20 |
50 |
|
GN19-12/1000-31.5 |
12 |
12.5 |
1000 |
31.5 |
80 |
|
GN19-12/1250-40 |
12 |
12.5 |
1250 |
40 |
100 |
|
GN19-12C/400-12.5 |
12 |
12.5 |
400 |
12.5 |
31.5 |
|
GN19-12C/630-20 |
12 |
12.5 |
630 |
20 |
50 |
|
GN19-12C/1000-31.5 |
12 |
12.5 |
1000 |
31.5 |
80 |
|
GN19-12C/1250-40 |
12 |
12.5 |
1250 |
40 |
100 |
● CERAMIC MATERIAL
Using ceramic insulators is less prone to aging and more durable.
● HIGH - QUALITY INSULATION
Use high - quality materials and avoid using recycled inferior materials.
● THICKENED STAINLESS STEEL
The product base is entirely made of a thickened shell.
● GROUNDING BOLT
Prevent static electricity and electric shock.
1. One-stop global supplier.
2. We’ve got a 24KV Indoor Type Disconnect Switch—and years of hands-on experience in the industry.
3. We offer professional online technology support to perfect your electrical solution for free.
4. Experienced sales service and suggestions.
5. All products with accessories are under strict quality control and undergo a final inspection before shipping.
6. We can guarantee powerful competitive prices and reliable quality products.
7. The most competitive shipping rates from our own shipping forwarder.
8. Warranty assurance: 12 months.
9. Whether it's a big or small order, we can provide you with one-to-one service.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? waterproof push button switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
