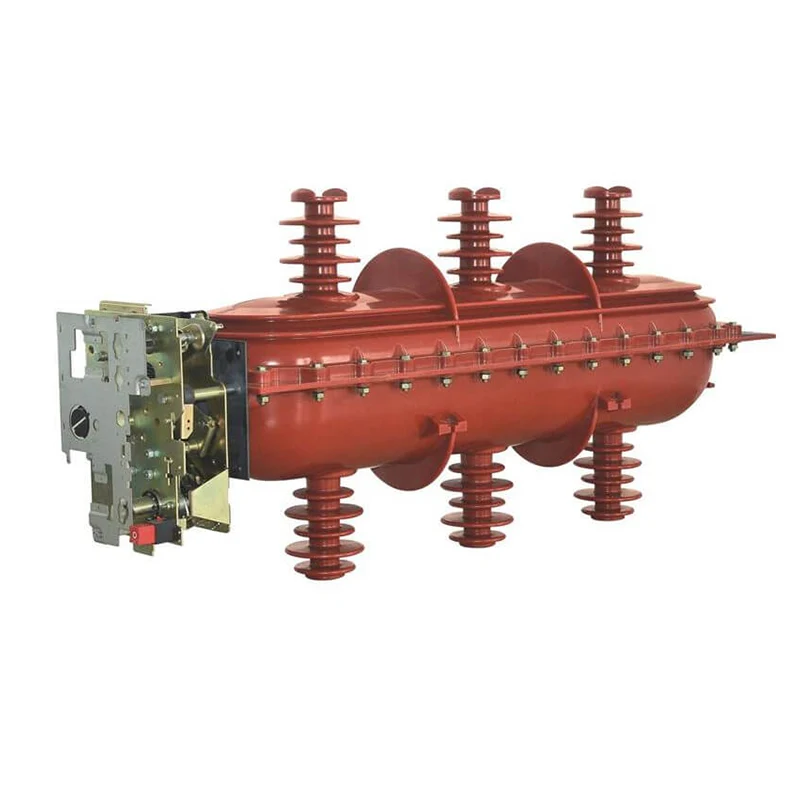

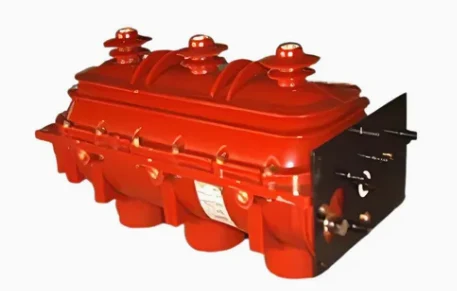

The SF6 High Voltage Load Break Switch, a robust and reliable electrical component available in 12kV and 36kV ratings, stands as a versatile solution for three - phase 50Hz ring main or terminal power supply systems, seamlessly integrating with industrial electrical equipment.Its primary role is to safeguard the critical lines within 10kV power load control systems, ensuring uninterrupted and secure energy distribution. This SF6 High Voltage Load Break Switch 12kV 36kV, with its sleek yet sturdy design, can effortlessly open and close load currents, loop currents, no - load transformer currents, and cable charging currents, making it an indispensable tool for precisely managing electrical flow.As a composite electrical appliance, it has the capability to interrupt any current up to its rated short - circuit current, providing a vital layer of protection and reliability. Its applications span across a wide array of electrical equipment, including compact ring main units and weather - resistant box - type substations, where space efficiency and performance are of utmost importance.

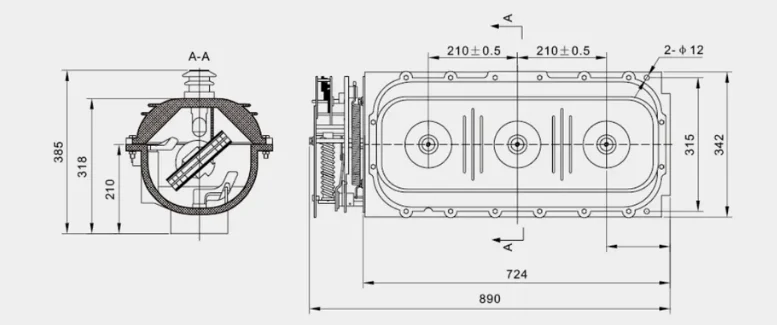

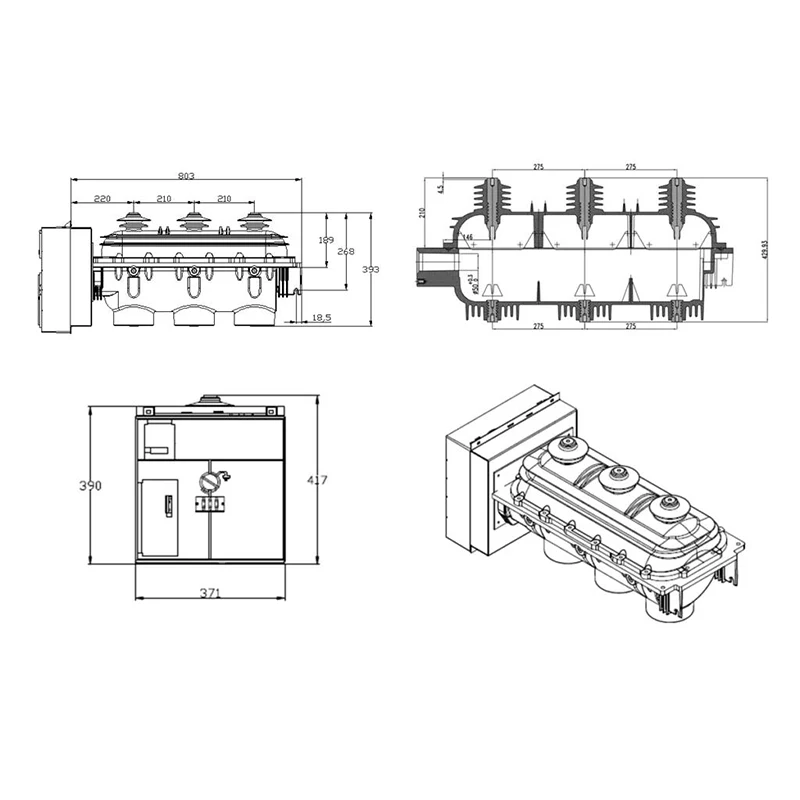

| Number | Name | Unit | Data | |
| 1 | Rated voltage | kV | 12 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Current rating | A | 630 | |
| 4 | Rated peak withstand current | kA | 50 | |
| 5 | 4S rated short-time withstand current | kA | 20 | |
| 6 | Rated closing current | kA | 50 | |
| 7 | Rated breaking current | Active load interrupting current | A | 630 |
| Closed-loop interrupting current | A | 630 | ||
| Cable charging interrupting current | A | 10 | ||
| 8 | Power frequency withstand voltage 1min interphase, to the ground/fracture | kV | 42/48 | |
| 9 | Withstand lightning impulse voltage interphased, to ground/fracture | kV | 75/85 | |
| 10 | Sf6 gas relative pressure (20°C gauge pressure) | MPa | ≤0.04 | |
| 11 | Rated operating voltage (electric) | V | AC220,DC220 | |
| 12 | Rated voltage of shunt tripper | V | AC220,DC220 | |
| 13 | Average opening speed | m/s | 3.5±1.5 | |
| 14 | Average closing speed | m/s | 3.5±1.5 | |
| 15 | Three-phase opening and closing simultaneity | ms | ≤3 | |
| 16 | Main loop resistance | μΩ | ≤120 | |
| 17 | Manual operation is most in the moment | N.m | ≤160 | |
| 18 | Center distance between phases | mm | 210±0.5 | |
JUCEG conducts strict pre - delivery checks for every order, ensuring that each unit functions perfectly before shipping. No defects are overlooked, keeping your wholesale orders secure.
JUCEG offers a comprehensive range of specifications for our products. We meet various project requirements and also accept custom requests from global customers.
We built for long-term use, with reliable performance you can trust for your power projects.
We’re a ships orders directly to you. No middlemen, faster lead times, and better prices for our wholesale customers worldwide
a) Air temperature
Maximum temperature: +40ºC; Minimum temperature: -5ºC
b) Humidity
Monthly average humidity: 95%; Daily average humidity: 90%.
c) Altitude above sea level
Maximum installation altitude: 2500m
d) Ambient air is not apparently polluted by corrosive and flammable gas, vapor, etc.
e) No frequent violent shaking
1. Excellent insulation performance
The SF6 High Voltage Load Break Switch 12kV 36kV has outstanding insulation performance, which can effectively isolate the electric field between conductors and grounding bodies, ensuring the normal operation and electrical safety of power equipment. Especially in recent years, with the increase in voltage levels, the demand for high-performance insulators has been increasing, and the application scope of insulators has also become more extensive.
2. Long service life
The insulating materials are usually high-strength ceramic materials, silicone rubber materials, glass fiber reinforced plastics, etc. Their service life is much longer than that of traditional metal materials, and they can maintain excellent insulation performance for a long time.
3. Good heat resistance
The insulator can adapt to high-temperature environments, maintain excellent insulation performance, and can withstand high pressure, electric field and strong current intrusion. Therefore, it is widely used in high-voltage power equipment.
4. High cost recovery rate
Although the price of this insulator is higher, its service life is also longer, and it does not require maintenance during use. Therefore, its cost recovery rate is high, and it can reduce the user's usage cost.
1. How long is the warranty period?
Normally, the warranty period is 12 months.
2. What paymentterms do you accept?
T/T, Western Union, and others upon request.
3. How about the type test?
Our client passedthe type test in Europe, and we alsoconducted atypetest in China.
