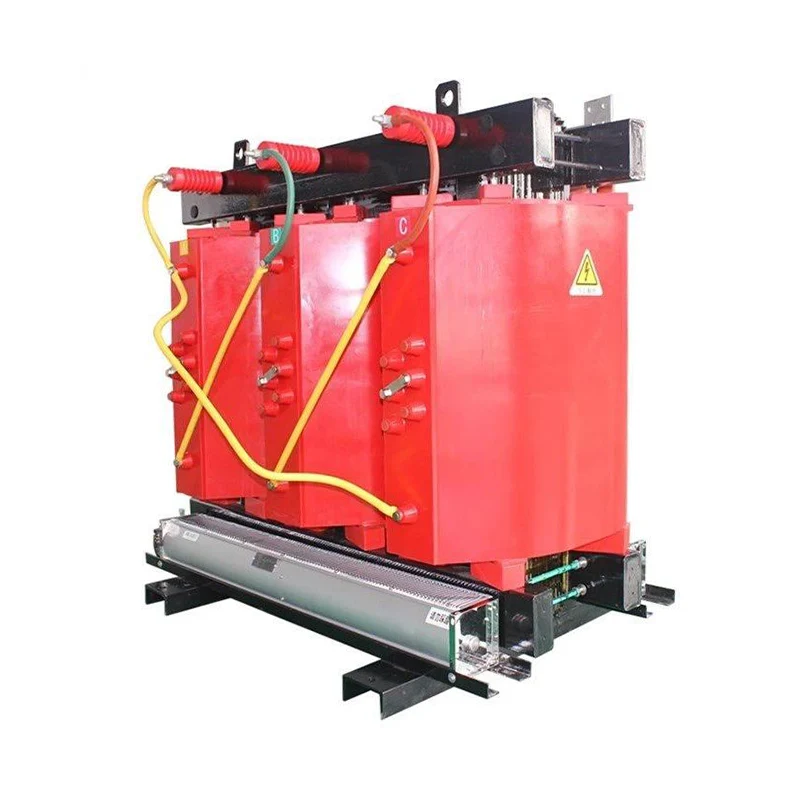

Three Phase Dry Type Distribution Transformer

JUCEG is a manufacturer and supplier specializing in supplying Three phase dry type distribution transformer.Dry-type transformers have numerous advantages, such as reducing maintenance costs, minimizing fire hazard risks, and enhancing energy efficiency. Globally, various industries are striving to adopt more sustainable production methods, and the use of such Three phase dry type distribution transformer aligns with energy-saving initiatives and helps to reduce carbon footprints. Numerous studies have shown that the use of dry-type transformers can achieve an efficiency improvement of over 98%, highlighting its significance in modern electrical infrastructure.

Working Principles

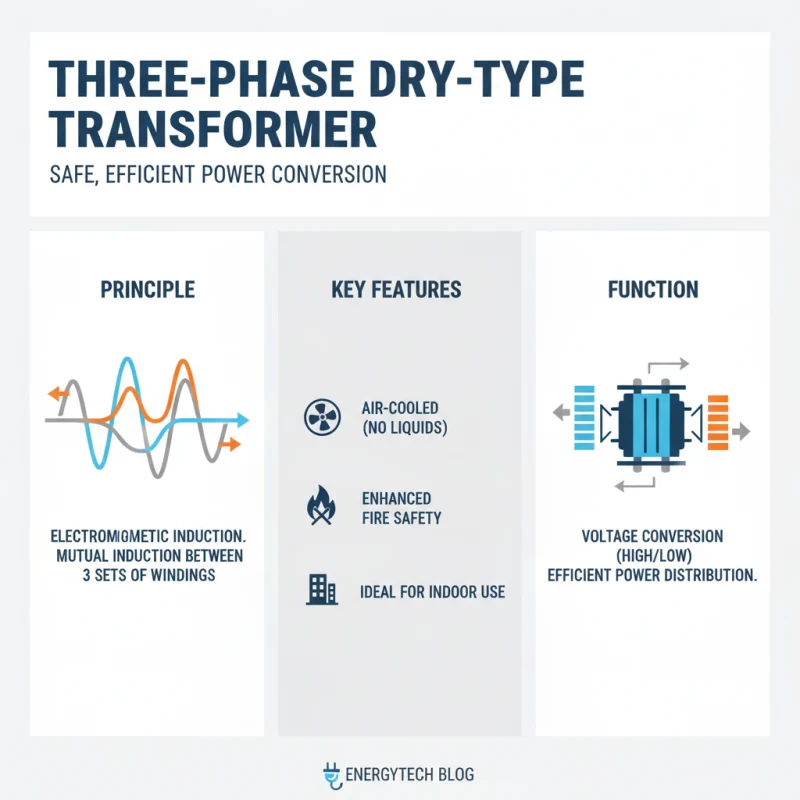

The design principle of a three-phase transformer is to transfer electrical energy between two or more circuits through electromagnetic induction, without using liquid coolant. Instead, Three phase dry type distribution transformer utilizes air as the cooling medium, which makes it particularly suitable for indoor applications and environments with fire safety requirements. This transformer operates based on the mutual inductance principle and consists of three groups of primary and secondary windings, each connected to a different phase. This configuration enables it to convert high voltage to low voltage (or vice versa) while maintaining efficient power distribution.

Three groups of alternating currents flow through the primary winding, thereby generating a rotating magnetic field. This magnetic field induces voltage in the secondary windings, which are connected to the load. The phase difference between the windings ensures the balance of the output, thus providing uniform power levels across all three phases. Additionally, the design of this Three phase dry type distribution transformer minimizes losses through its efficient insulation and robust structure, enabling it to operate.high loads while dissipating heat effectively through convection. This makes it a favored choice for applications requiring reliable and safe electrical distribution.

Applications

Three phase dry type distribution transformer are indispensable components in numerous industries due to their reliability and efficiency in power distribution. These transformers are widely used in manufacturing plants, where they can reduce high voltage electricity for the use of mechanical equipment. Compared to oil-immersed transformers, dry-type transformers have lower fire risks and are therefore particularly suitable in safety-conscious environments. Additionally, their compact design makes installation easier in factories with limited space.

Another important application area is commercial buildings. In these structures, three-phase transformers provide the necessary voltage conversion for lighting systems, air conditioning systems, and other electrical loads. These transformers help achieve energy-efficient operation, thereby reducing operating costs. Additionally, their robust and durable characteristics make them suitable for outdoor installations, such as in substations or renewable energy systems, where they can effectively handle power fluctuations and enhance the stability of the power grid. The versatility of Three phase dry type distribution transformer ensures that they always play a crucial role in meeting the growing energy demands of various industries.

What is a Three Phase Dry Type Transformer and How Does it Work - Applications of Three Phase Dry Type Transformers in Different Industries

FAQs

What can you buy from us?

110kV-220kV Oil-immersed Power Transformer,Dry-type Transformer,Unpacked H Grade Dry Transformer,Oil-immersed Distribution Transformer, Pad-mounted Transformer,Enameled Wire,Composite Wire,Transposed Wire,Paper Covered Wire,Film Wrapped Wire.

Why should you buy from us not from other suppliers?

As an enterprise specializing in transformer production for 15 years, we have high quality, fast delivery, guarantee after-sales service and factory price. What's more, we have ISO9001-2008, OHSAS 18001:2007, ISO4001:2004L certificates and IEC, ANSI, KEMA, GOST standard.

How can we guarantee quality?

Always send a sample of products before mass producing; Always make a final Inspection before shipping.
