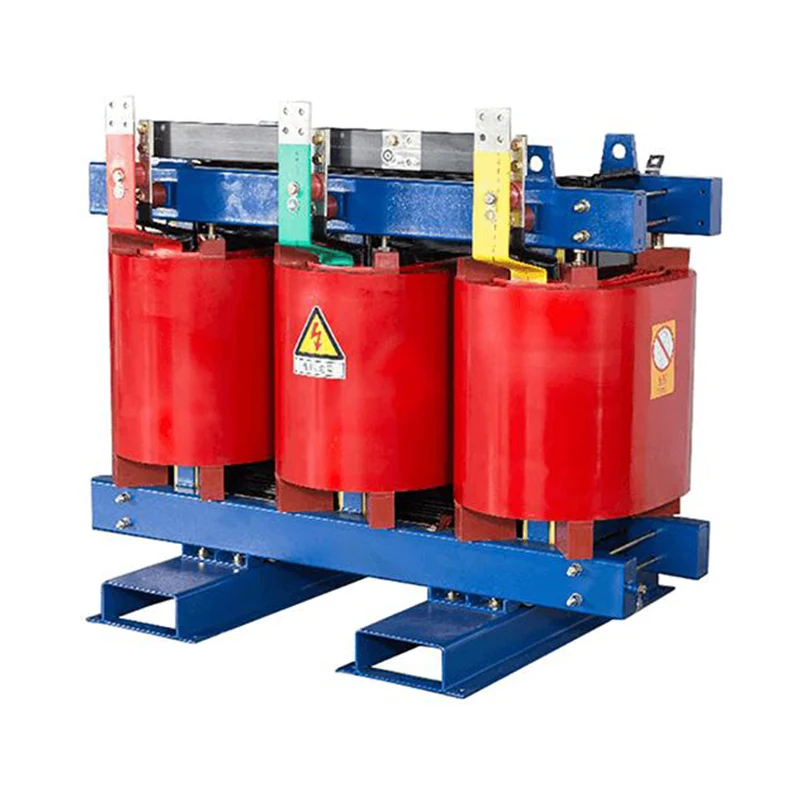

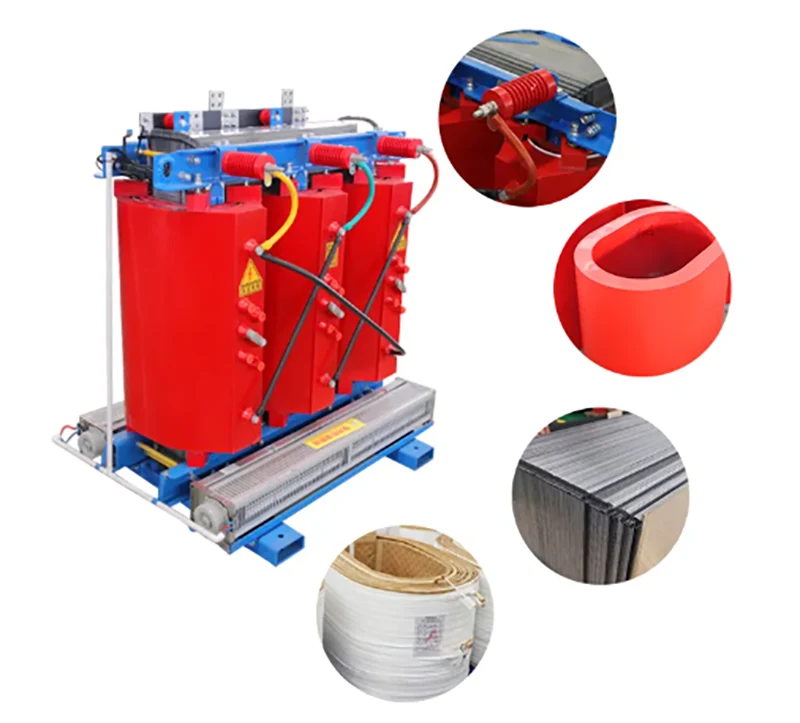

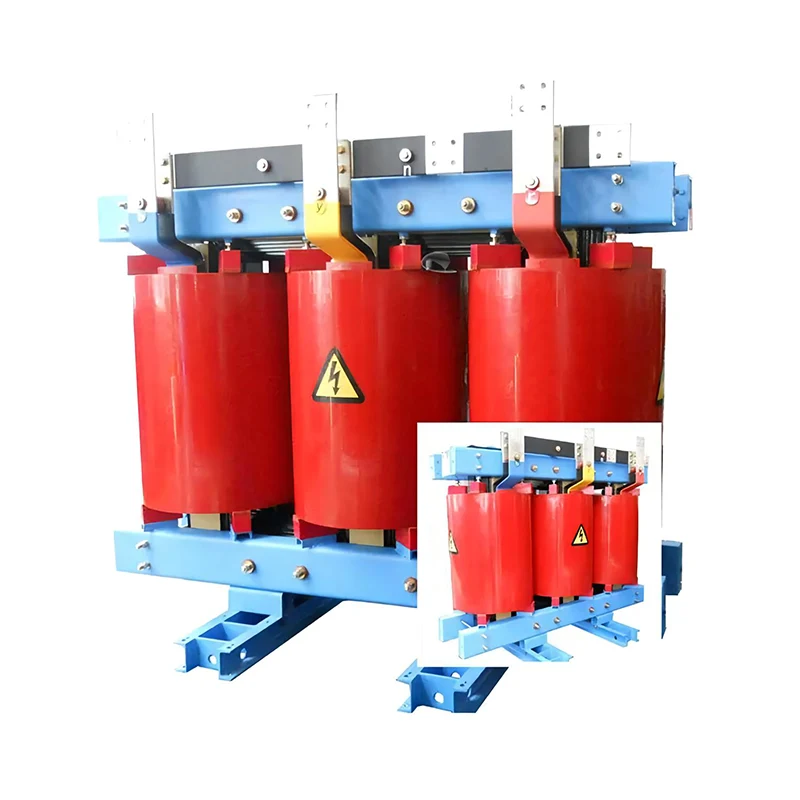

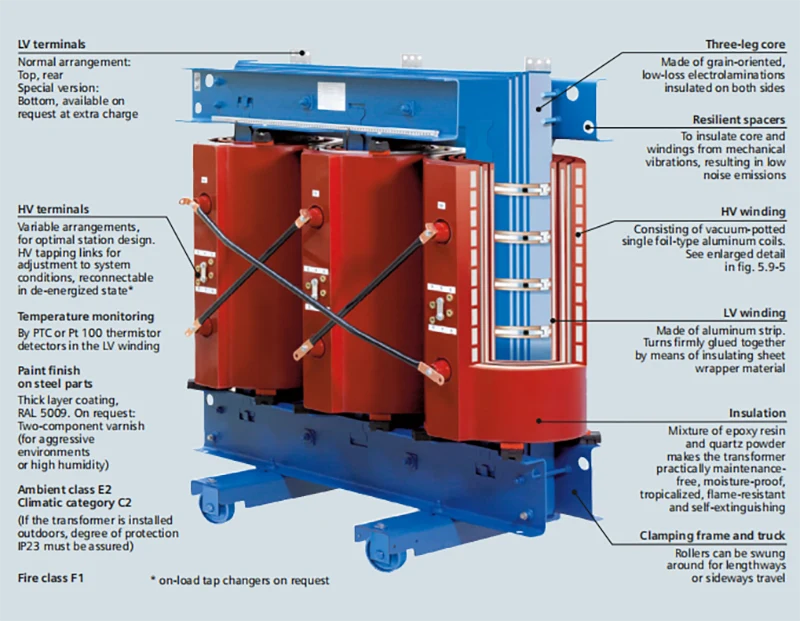

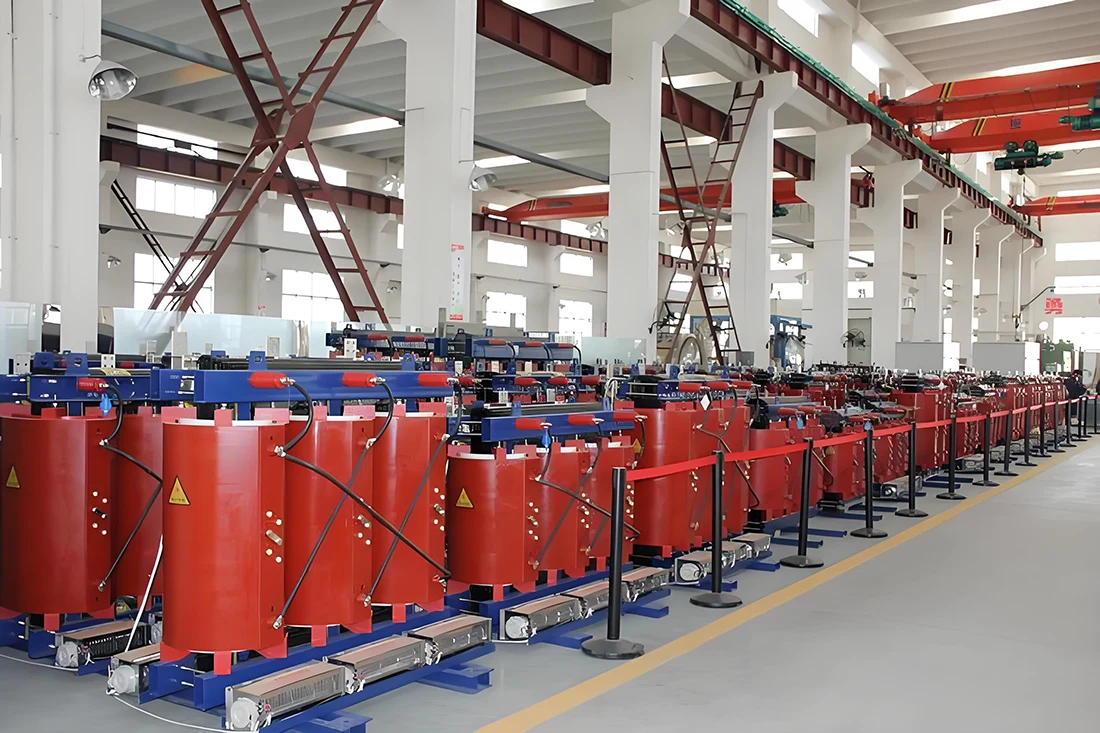

Factory-direct 400KVA Cast Resin Transformer wholesale – 50% off bulk orders.The winding is completely encapsulated in epoxy resin using the epoxy resin casting process, forming a dense insulation layer with extremely high insulation strength. This can effectively prevent electrical breakdown and local discharge. The dielectric loss tangent value (tanδ) of the epoxy resin is extremely low, reducing energy loss and improving the efficiency of the transformer. The epoxy resin cast after pouring forms a high-strength fiberglass reinforced plastic structure, which can withstand short-circuit current impact, mechanical vibration, and collisions during transportation, protecting the winding from damage. 400KVA Cast Resin Transformer has good anti-cracking performance, and can maintain structural integrity even in environments with large temperature variations, preventing insulation layer cracking and resulting insulation failure. The casting process completely seals the winding in the epoxy resin, effectively preventing moisture, dust, and corrosive gases from entering, and prolonging the service life of the transformer. It is suitable for corrosive environments such as chemical and metallurgical industries, as well as coastal areas with high humidity or underground locations.
|
Transformer Type |
Resin Cast Dry Type |
|
Model |
SCB10-50/10 |
|
Number of Phase |
Three Phase |
|
Winding Type |
Two Winding |
|
Winding Material |
Aluminum/Copper |
|
Rated Capacity |
50kVA |
|
High Voltage |
10/11kV |
|
Low Voltage |
0.4kV |
|
Tapping Range |
±2x2.5% |
|
Impedance Voltage |
4% |
|
Load Loss (120°C) |
1kW |
|
No-load Loss |
0.27kW |
|
No-load Current |
2% |
|
Frequency |
50/60Hz |
|
Connection Group |
Yyn0/Dyn11 |
|
Cooling Method |
ANAF |
|
Insulation Class |
F |
|
Thermal Class |
F1 |
|
Protection Level |
IP00/IP20/IP30 |
|
Climatic Class |
C2 |
|
Environmental Class |
E2 |
|
Temperature Rise |
100K |
|
Operation Altitude |
≤1000m |
|
Size |
950x750x915mm |
|
Weight |
575kg |
SG10 Series power transformers use great material and new technology to achieve H-grade insulation, it is reliably used in ambient temperature up to 180ºCand the main part of the transformer can sustain up to 220ºC.
SG10 series power transformers use insulated materials which is flame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There's no poisonous fumes during long time burning at 800ºC.
SG10 series power transformers use special coil design and technology to achieve moisture-proof, mould proof and fame proof. It can sustain high thermal shock without partial discharge.
SG10 series power transformer can sustain 120% rated capacity. It can longtime running under IP23 without force air cooling.
|
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (KV) |
Connection Symbol |
On-load Loss (W) |
No-Load Current (%) |
|
50 |
20 22 24 or others |
0.4 |
Dyn11 YNyn0 |
1300 |
2.4 |
|
100 |
2100 |
2.2 |
|||
|
160 |
2600 |
1.8 |
|||
|
200 |
3100 |
1.8 |
|||
|
250 |
3600 |
1.6 |
|||
|
315 |
4300 |
1.6 |
|||
|
400 |
5100 |
1.4 |
|||
|
500 |
6100 |
1.4 |
|||
|
630 |
7200 |
1.2 |
|||
|
800 |
8700 |
1.2 |
|||
|
1000 |
10300 |
1.0 |
|||
|
1250 |
12150 |
0.9 |
|||
|
1600 |
14600 |
0.9 |
|||
|
2000 |
17250 |
0.8 |
|||
|
2500 |
20400 |
0.8 |
|||
|
5000 |
35800 |
0.7 |
|
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (KV) |
Connection Symbol |
On-load Loss (W) |
No-Load Current (%) |
|
50 |
20 22 24 or others |
0.4 |
Dyn11 YNyn0 |
1300 |
2.4 |
|
100 |
2100 |
2.2 |
|||
|
160 |
2600 |
1.8 |
|||
|
200 |
3100 |
1.8 |
|||
|
250 |
3600 |
1.6 |
|||
|
315 |
4300 |
1.6 |
|||
|
400 |
5100 |
1.4 |
|||
|
500 |
6100 |
1.4 |
|||
|
630 |
7200 |
1.2 |
|||
|
800 |
8700 |
1.2 |
|||
|
1000 |
10300 |
1.0 |
|||
|
1250 |
12150 |
0.9 |
|||
|
1600 |
14600 |
0.9 |
|||
|
2000 |
17250 |
0.8 |
|||
|
2500 |
20400 |
0.8 |
|||
|
5000 |
35800 |
0.7 |
|
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (KV) |
Connection Symbol |
On-load Loss (W) |
No-Load Current (%) |
|
50 |
6 6.3 6.6 10 10.5 11 13.2 or others |
0.4 |
Dyn11 YNyn0 |
990 |
2 |
|
100 |
1570 |
1.8 |
|||
|
160 |
2120 |
1.4 |
|||
|
200 |
2520 |
1.4 |
|||
|
250 |
2750 |
1.4 |
|||
|
315 |
3460 |
1.2 |
|||
|
400 |
3980 |
1.2 |
|||
|
500 |
4880 |
1.2 |
|||
|
630 |
5870 |
1 |
|||
|
800 |
6950 |
1 |
|||
|
1000 |
8120 |
0.8 |
|||
|
1250 |
9690 |
0.8 |
|||
|
1600 |
11730 |
0.8 |
|||
|
2000 |
14450 |
0.6 |
|||
|
2500 |
17170 |
0.6 |
|||
|
5000 |
34600 |
0.5 |
1. Select the appropriate rated capacity based on the actual load conditions, taking into account the demand for future load growth. The rated capacity of 400KVA Cast Resin Transformer should be equal to or greater than the rated capacity of the load to handle current requirements and consider future expansion.
2. Confirm the altitude, environmental temperature, humidity and other conditions of the installation location of 400KVA Cast Resin Transformer. If necessary, select specially designed transformers.
For outdoor transformers, choose products with higher protection grades to cope with various complex weather conditions.
3. Based on the installation space and protection requirements, select the appropriate protection level and cooling method.
For locations with limited space, a transformer with a small size and light weight should be chosen to facilitate installation and maintenance.
4. Confirm the rated voltage and voltage fluctuation range of the system, and select the corresponding voltage levels for the high and low sides.
The rated voltage of the transformer should be equal to or greater than the rated voltage of the system to ensure stable power transmission.
5. Based on the system grounding method and load characteristics, select the appropriate connection group.
Common connection groups include Dyn11, Yyn0, etc. You can choose according to your actual needs.
