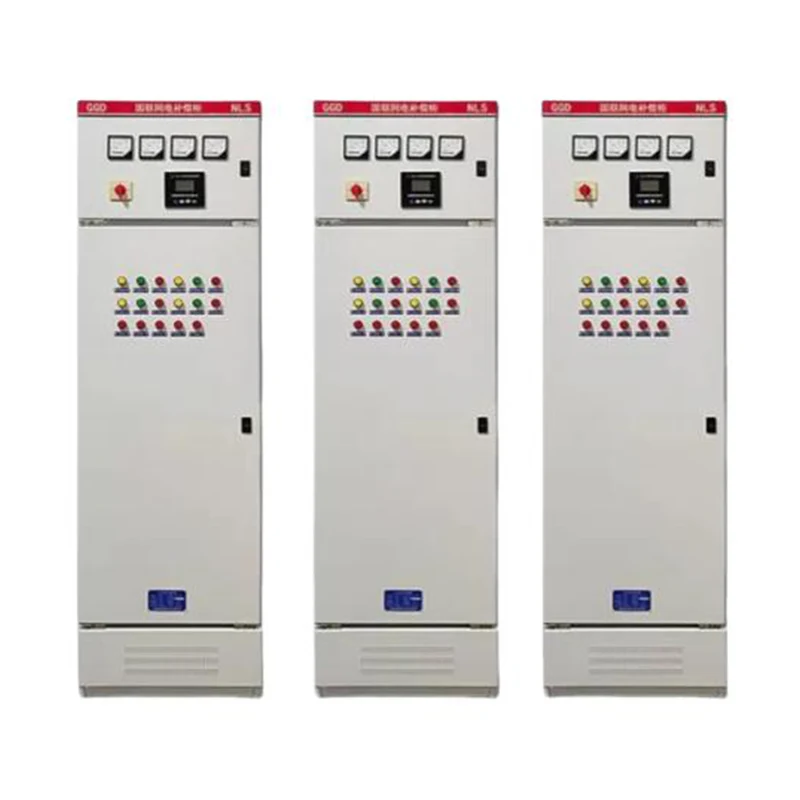

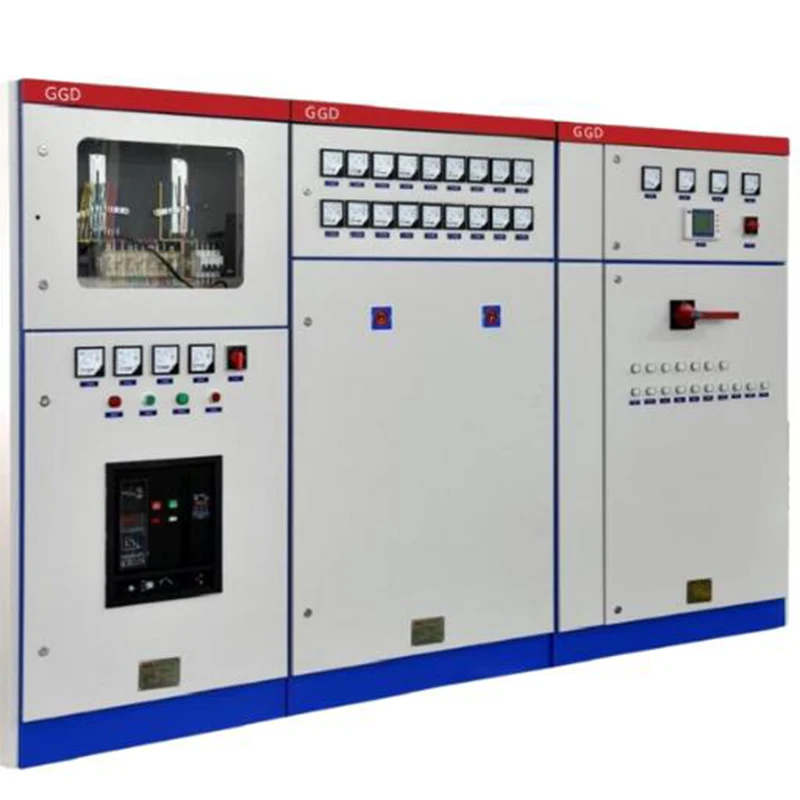

JUCEG provides high quality GGD AC low voltage distribution cabinet,You can rest assured to buy it from our factory.The GGD distribution cabinet has a high short-circuit breaking capacity, which can effectively cut off the fault current and protect the equipment and personnel safety. In the case of short circuit or overload, it can maintain structural stability and avoid deformation or damage. It provides multiple main circuit and auxiliary circuit schemes, which can be flexibly combined and configured according to actual needs. GGD AC low voltage distribution cabinet adopts a modular design, with strong component interchangeability, making it convenient for installation, expansion and maintenance. The product series are rich and the specifications are complete, which can meet the needs of different users and scenarios. The structure is novel, with a high protection level, and is adaptable to various harsh environments. The GGD distribution cabinet complies with standards such as IEC439 "Low-Voltage Enclosed Switchgear and Controlgear" and GB7251 "Low-Voltage Enclosed Switchgear and Controlgear", ensuring the safety and reliability of the product.
The GGD distribution cabinet adopts a universal cabinet form. The frame is assembled by partially welding 8MF cold-formed steel sections, which has high strength and rigidity. The internal compartments of the cabinet are divided into busbar compartment, functional unit compartment and cable compartment. The three compartments are isolated from each other to effectively prevent the expansion of accidents. The GGD distribution cabinet provides 129 main circuit schemes, totaling 298 specifications (excluding the schemes derived from functional changes and control voltage changes of the auxiliary circuits). Among them, the GGD1 type has 49 schemes and 123 specifications, the GGD2 type has 53 schemes and 107 specifications, and the GGD3 type has 27 schemes and 68 specifications. According to user requirements, the GGD distribution cabinet can be configured with various auxiliary circuit schemes to meet different control, protection and monitoring needs. The main busbar of GGD AC low voltage distribution cabinet adopts a combined busbar clamp and insulation support made of high-strength, high-flame-retardant PPO alloy material, which has high insulation strength and self-extinguishing performance. The busbar clamp can be conveniently combined into single busbar clamp or double busbar clamp to adapt to different current requirements.
The GGD AC low-voltage distribution cabinet is widely used in the following scenarios:
GGD AC low voltage distribution cabinet is used for the distribution of power at the generator outlet and the distribution of plant power, etc. As a low-voltage side distribution equipment, it realizes the distribution and control of electrical energy. It is used for the power distribution of production equipment, lighting distribution, etc. For example, in office buildings, shopping malls, hotels, etc., it is used for the distribution of lighting and air conditioning equipment in public areas. It is used for the distribution of public lighting and elevator equipment in residential buildings. For example, in hospitals, schools, airports, stations, etc., it is used to ensure the power supply of important equipment.
With the advancements in technologies such as the Internet of Things, big data, and artificial intelligence, GGD distribution cabinets will achieve remote monitoring, fault diagnosis, and automated control, enhancing energy utilization efficiency and system security. The industry will increasingly focus on the application of energy-saving and environmental protection technologies, promoting green energy and clean production. GGD distribution cabinets will adopt more environmentally friendly materials and processes, reducing energy consumption and emissions. As user demands become more diverse, providing customized services to meet the individual needs of different customers will become a development trend in the industry. GGD distribution cabinets will be flexibly configured and optimized designed according to the actual needs of users. GGD AC low voltage distribution cabinet, in order to adapt to the rapid development of new energy sources such as wind power and solar energy, GGD distribution cabinets need to provide reliable grid connection solutions to ensure the stable connection and distribution of new energy power.
