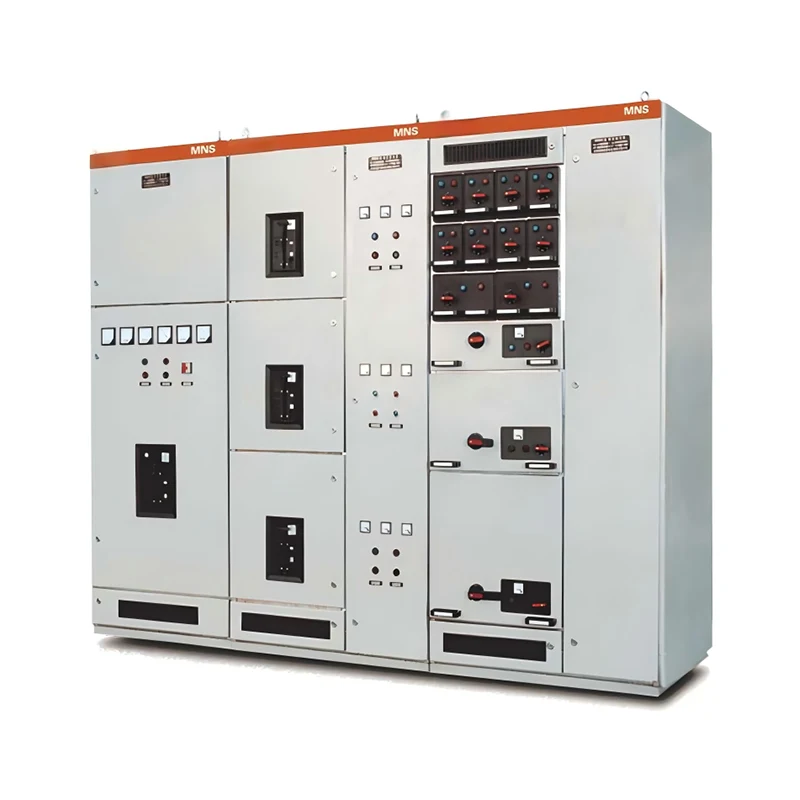

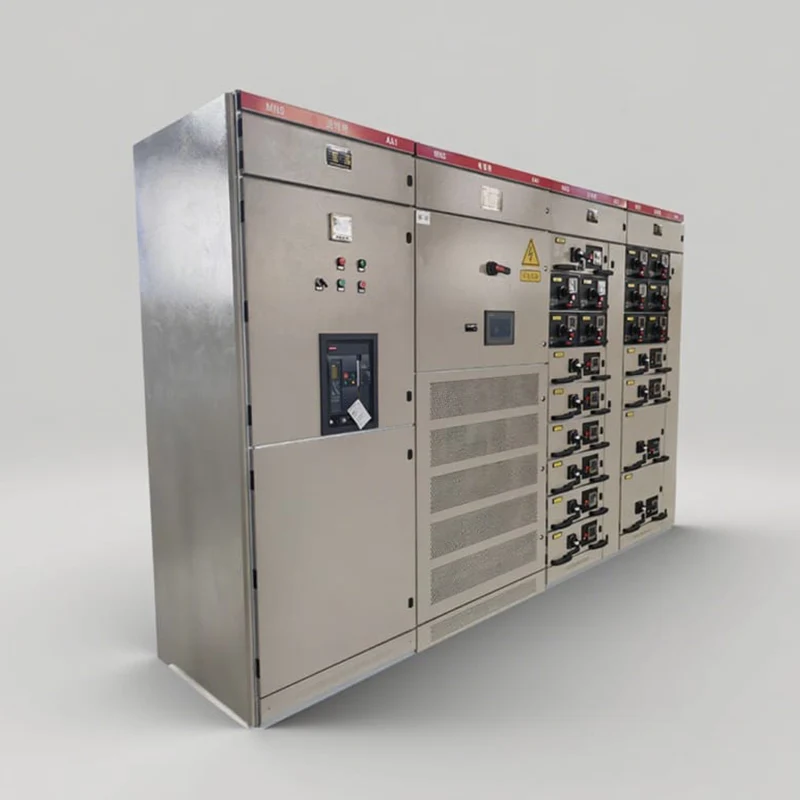

As the professional manufacturer, we would like to provide you JUCEG MNS low voltage withdrawable switchgear. And we will offer you the best after-sale service and timely delivery.The MNS low-voltage withdrawable switchgear is a modular low-voltage power distribution equipment assembled by the factory using standard modules. It is specifically designed for low-voltage power distribution systems and is suitable for power networks with an AC frequency of 50-60Hz and a rated working voltage of 660V or below. MNS low voltage withdrawable switchgear is widely used in industries such as manufacturing, energy and chemical industries, metallurgy and heavy industry, meeting the stable power supply and frequent maintenance requirements of production line equipment. For example, in high-rise buildings, commercial complexes, etc., it realizes power supply for air conditioning systems, elevators, lighting, and fire protection equipment, supporting non-essential circuits with no power interruption for maintenance. For transportation hubs, medical facilities, municipal engineering, etc., it ensures the continuity of public services and avoids power outages affecting operations. For photovoltaic power stations, energy storage stations, and electric vehicle charging stations, it supports the power distribution needs of new energy generation, energy storage, and charging equipment.
MNS low voltage withdrawable switchgear is constructed based on a standardized modular structure, and can be equipped with drawer units, fixed units, or a mixed functional configuration to meet different power distribution and motor control requirements. Its compact design enables more functional units to be integrated into a limited installation space, making it highly suitable for projects that require efficient utilization of electrical rooms. The cabinet is made of flame-retardant engineering plastic components and independent functional units to enhance protection performance, reduce operational risks, and support safer maintenance. The removable drawer units facilitate inspection, replacement, and future expansion, helping to reduce maintenance time and improve service efficiency. The rated voltage can reach up to 690 volts alternating current, the main bus current can reach up to 6300 amperes, and the protection level ranges from IP30 to IP54. The MNS switch cabinet is suitable for industrial factories, substations, commercial buildings, and infrastructure projects. The system of MNS low voltage withdrawable switchgear complies with IEC 61439 and GB/T 7251.1/12 standards, providing reliable technical performance for modern low-voltage distribution systems.
● Ambient Air: The ambient air temperature shall not exceed +40°C and shall not be lower than -5°C, and the average temperature within 24 hours shall not exceed +35°C.
● Atmospheric Conditions: The air shall be clean. Relative humidity shall not exceed 50% at a maximum temperature of +40°C. At lower temperatures, higher relative humidity is permissible, for example, 90% at +20°C. However, temperature changes may occasionally cause condensation.
● Altitude: The installation altitude shall not exceed 2000 m above sea level.
● Special Conditions: If the above service conditions cannot be met, the user and the manufacturer shall negotiate a solution separately.
● Special Applications: When this equipment is used on offshore oil drilling and production platforms or in nuclear power plants, a separate technical agreement shall be signed.
● Compact design: More functional units can be accommodated in a relatively small space. The 25-millimeter modular C-shaped architecture can meet the requirements of various structural forms, protection levels, and usage environments.
● Standard module design: Standard units for protection, operation, switching, control, adjustment, measurement, and indication can be assembled separately. Users can freely choose and combine them according to actual needs. MNS low voltage withdrawable switchgear up to 200 assembly components enable the configuration of different cabinet frame structures, fixed partition units, or drawer units, thus forming various solutions.
● High safety: A large number of high-strength, flame-retardant engineering plastic components are used to effectively enhance protection and operational safety. The main technical parameters have reached the contemporary international advanced level.
● Space saving: The high degree of standardization, serialization, and modularization significantly reduces the space required for the storage and transportation of prefabricated components. Simple assembly: Installation and assembly do not require the use of special or complex tools.
