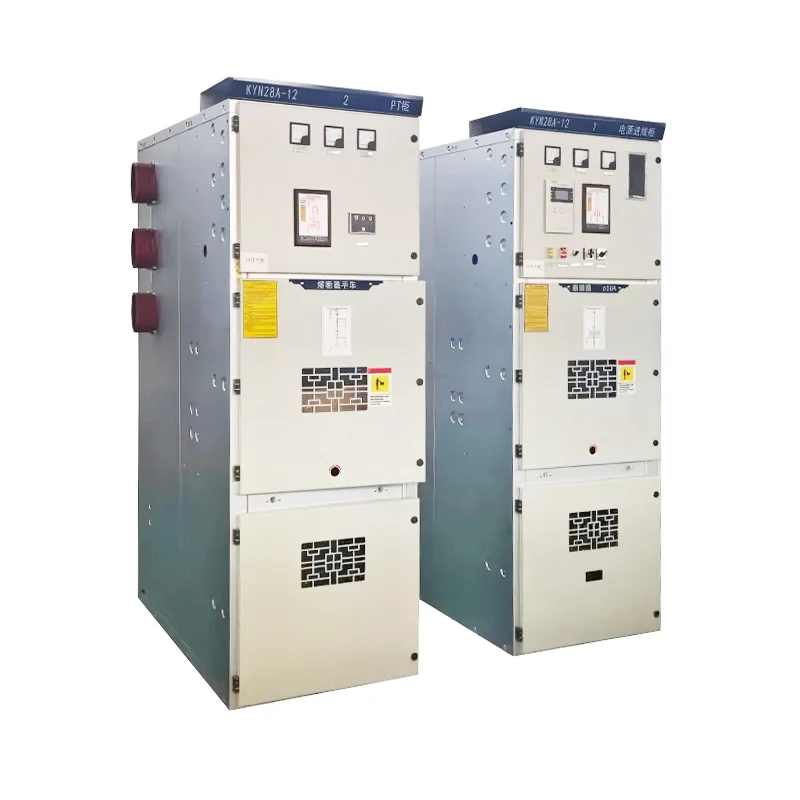

KYN28 24kV Armored Removable Switchgear

China KYN28 24kV Armored Removable Switchgear manufacturers – high-quality OEM/ODM suppliers with competitive pricing!Functions such as load switches, circuit breakers, and disconnectors can be configured according to requirements. Easy expansion is supported, and future capacity expansion and renovation are also possible. KYN28 24kV Armored Removable Switchgear uses solid insulation busbars, eliminating the risk of inter-phase short circuits and enhancing system safety. It can integrate intelligent monitoring modules to achieve remote control, data collection, and fault diagnosis. The Metal Solid Insulated Switchgearsupports communication with the superior dispatching center to achieve distribution automation.

The 12kV metal solid insulated switchgear combines the advantages of indoor and solid insulation:

All high-voltage live components are covered with a sturdy insulating layer, which is not affected by factors such as dust, moisture, condensation water, and small animals. Its reliability is extremely high. The dielectric constant of solid insulating materials is much higher than that of air, so the insulation distance between live components can be significantly shortened under the same voltage level. Therefore, this equipment is very compact and can save space, which is crucial for indoor distribution rooms with limited space. 12kV Metal Solid Insulated Switchgear completely eliminates sulfur hexafluoride gas, eliminates the risk of greenhouse effect, and is an ideal equipment choice for green power grids. Due to the complete insulation of the high-voltage components, even if the cabinet door is opened, the operator will not directly contact the live parts, thus ensuring extremely high personal safety. The internal switches and other components are made of epoxy resin and do not require any lubricated moving parts, thus achieving lifelong maintenance-free, reducing operating and maintenance costs and workload. The compact size, light weight of 12kV Metal Solid Insulated Switchgear, facilitate transportation, installation and indoor layout. The modular design also makes it convenient for future expansion.

Where can this switchgear be used?

12kV metal solid insulated switchgears are widely used in power distribution areas that require safety, reliability and space-saving:

· Commercial buildings: Underground power distribution rooms of office buildings, shopping centers, and hotels.

· Residential areas: Central power distribution centers within the residential communities.

· Industrial enterprises: Workshop substations within factories.

· Public facilities: Power distribution systems of subway stations, airport terminals, hospitals, schools, etc.

· Data centers: In situations where high reliability of power supply and high space utilization rate are required.

· New energy field: Indoor step-up stations for photovoltaic/wind power projects.

Standard specification of metal solid insulated switchgear

1. Rated voltage: 12 kV

2. Rated current: 630A / 1250A

3. Rated frequency: 50/60Hz

4. Ambient temperature: Indoor -25℃ to 40℃; Outdoor: -35℃ to 40℃

5. Altitude: The standard applies to areas up to 1000 meters. For altitudes exceeding 1000 meters, capacity reduction must be implemented in accordance with the standard.

6. Relative humidity: Daily average ≤ 95% Monthly average ≤ 90%

7. Protection class: IP4X (IP67)

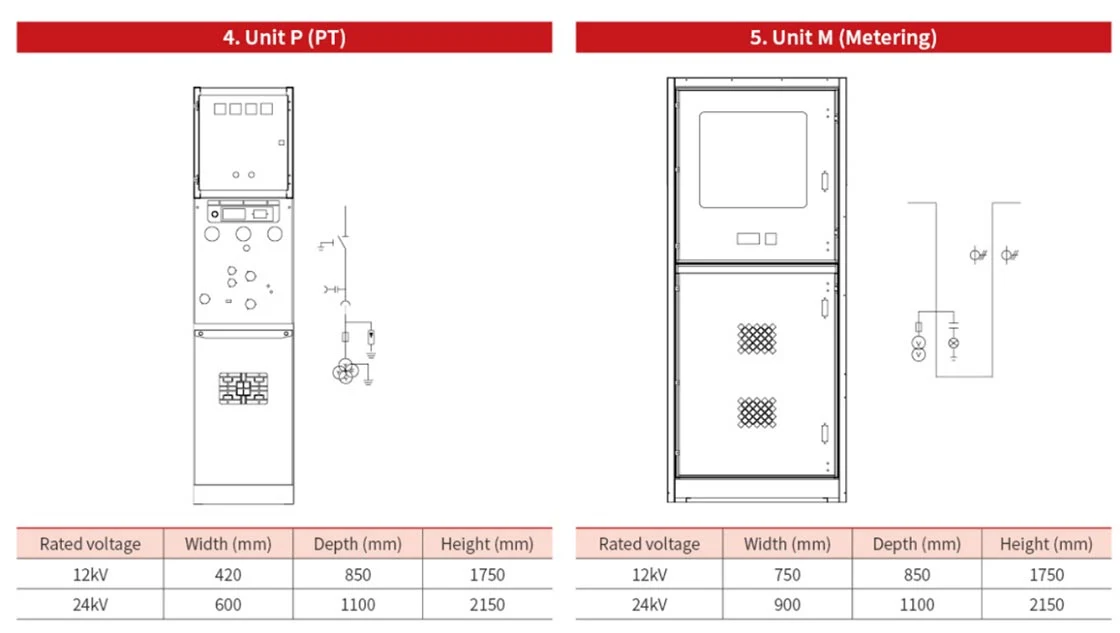

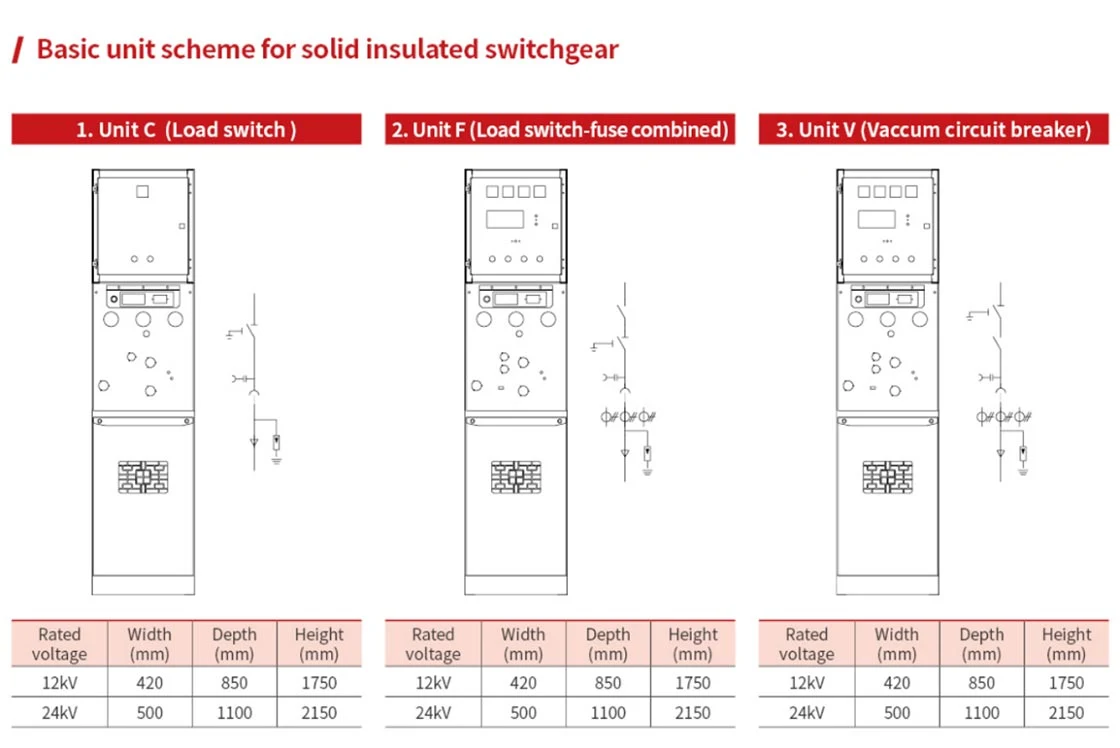

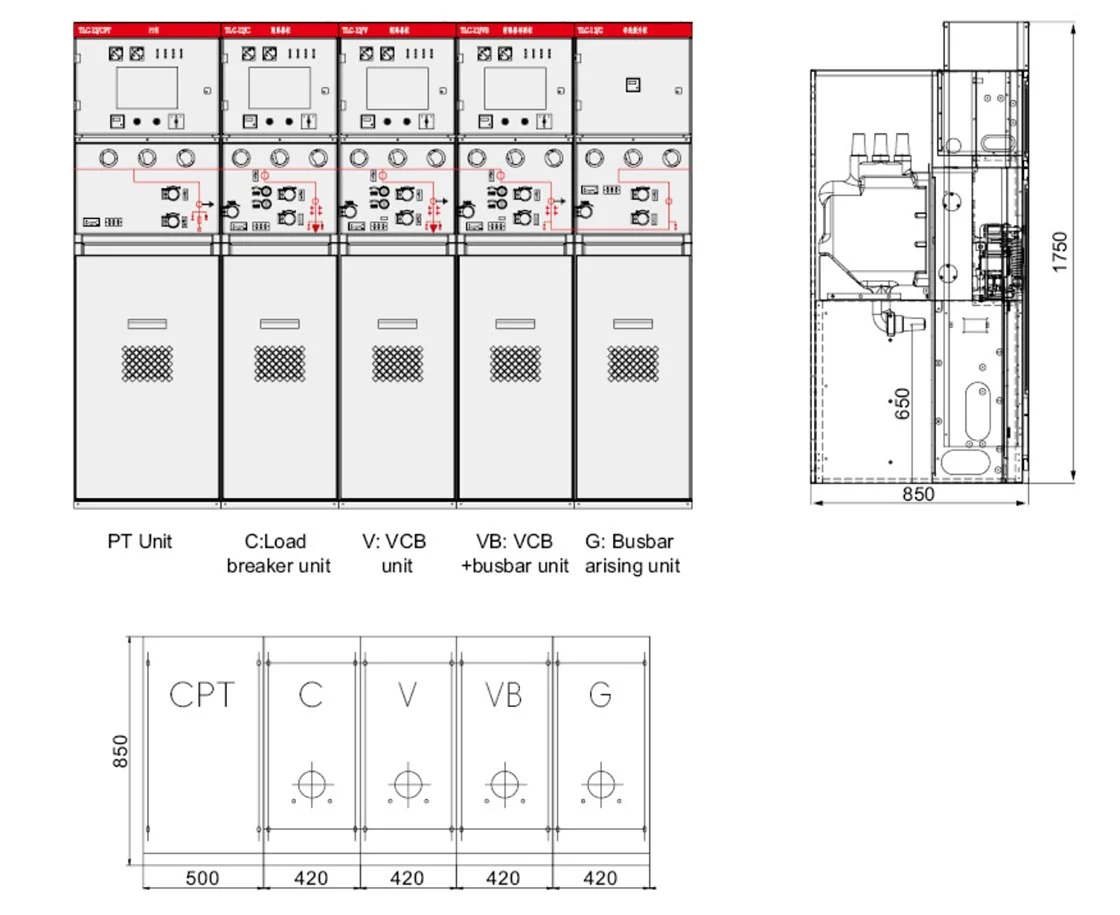

Drawing and dimensions
