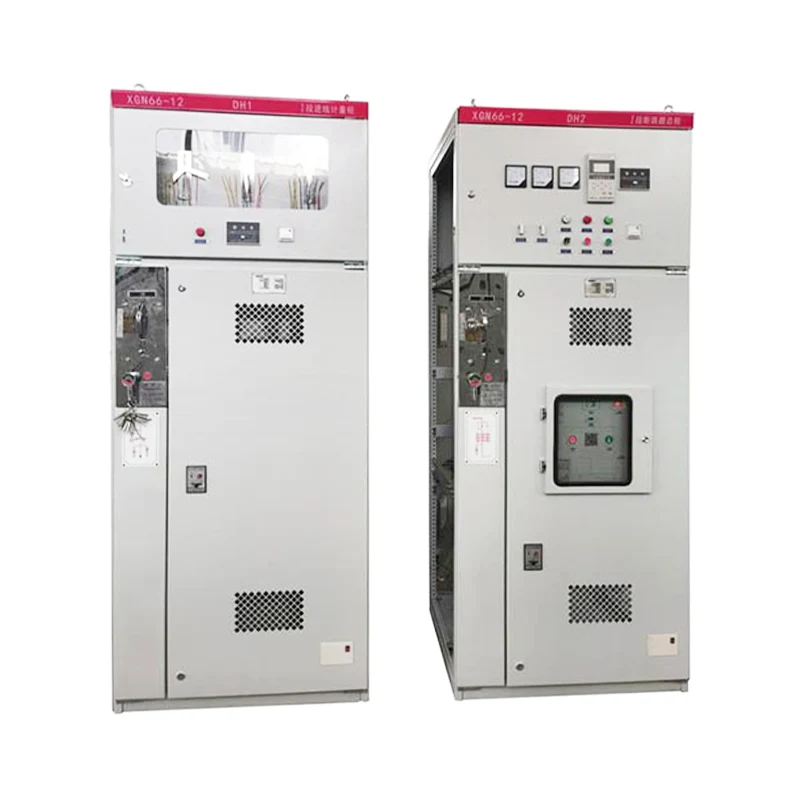

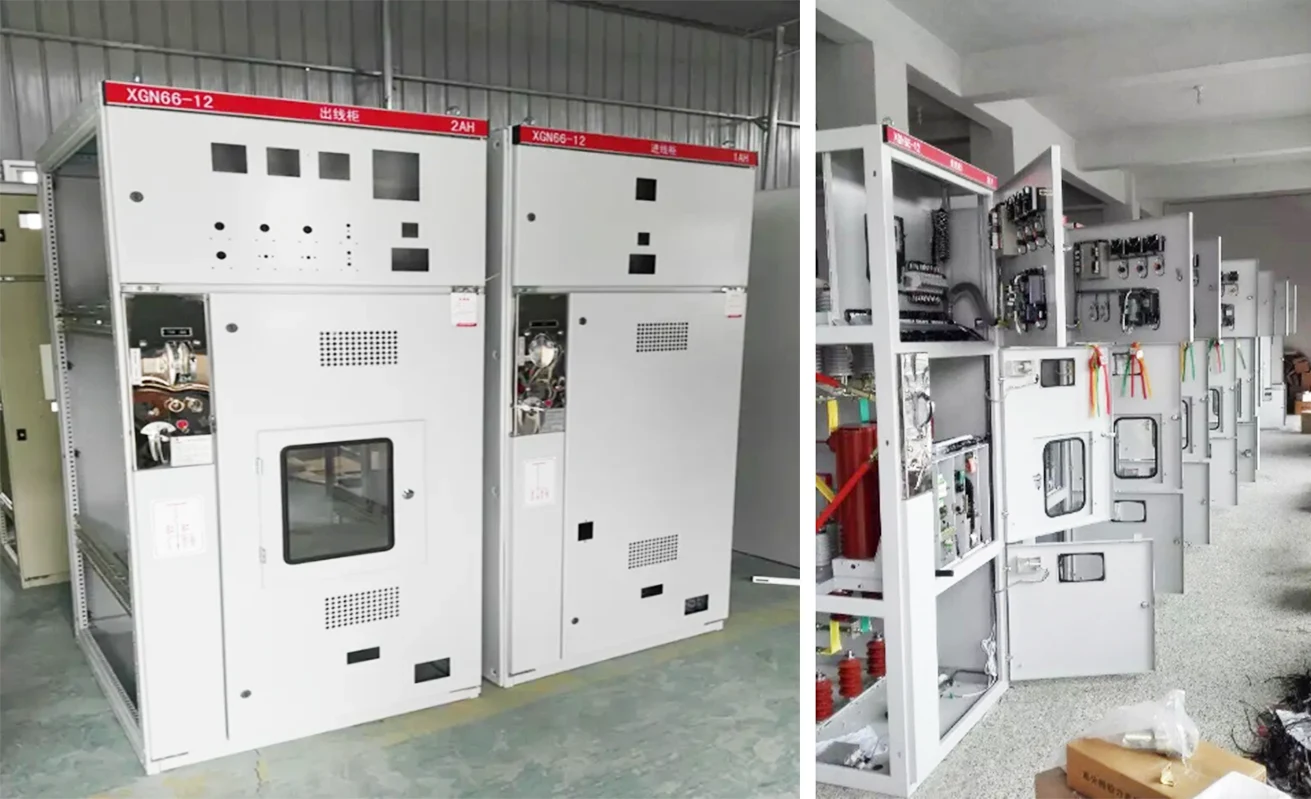

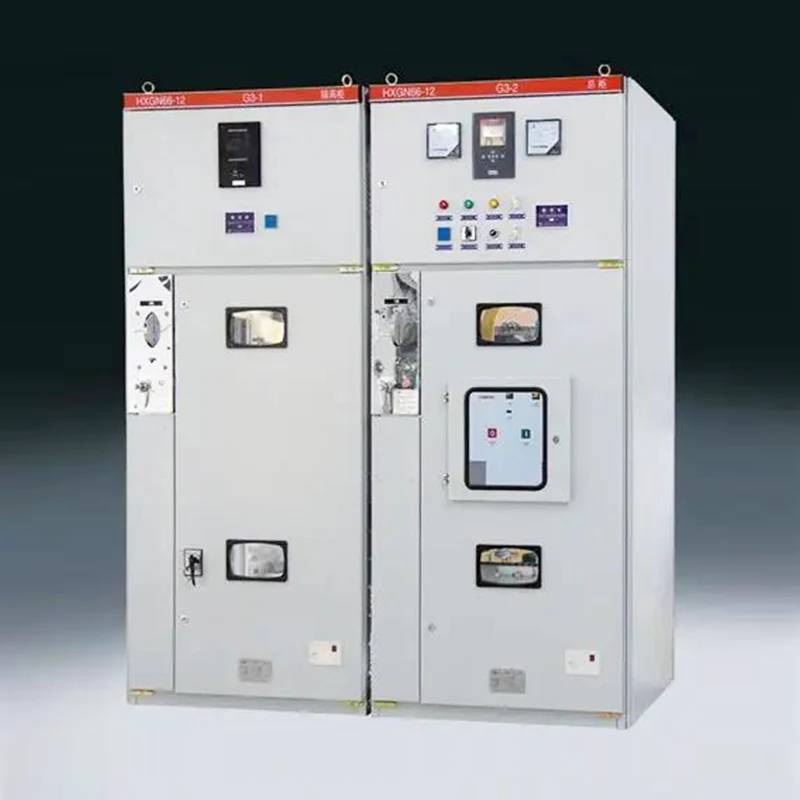

XGN66 12kV Three Phase AC Switchgear

This XGN66 12kV Three Phase AC Switchgear incorporates advanced foreign technologies and has the advantages of small size, high reliability of circuit breakers, superior performance, and reliable and simple "five-prevention" interlocking mechanism.

As a professional high quality JUCEG XGN66 12kV Three Phase AC Switchgear manufacturer,we will offer you the best after-sale service.XGN66-12 type switch cabinet is small in size, as the volume of the XGN66-12 type switch cabinet is only 50% of that of a regular switch cabinet, which helps to save space. It adopts high-performance circuit breakers to ensure the stability and reliability of the switch cabinet during operation. Through the mandatory mechanical locking device, it effectively prevents misoperation and enhances the safety of the equipment. It is convenient for installation, commissioning and maintenance, and reduces operation and maintenance costs. XGN66 12kV Three Phase AC Switchgear has the advantages of being able to operate normally under environmental conditions of -25℃ to +40℃ and an altitude of no more than 1000m.

Technical Specifications

Rated Voltage: 12kV

Rated Current: 630A to 4000A

Rated Short-Term Withstand Current: 20kA to 40kA (4-second RMS value)

Rated Peak Withstand Current: 50kA to 100kA

1-minute Power Frequency Withstand Voltage: 42kV

Lightning Impact Voltage: 75kV

Protection Grade: IP2X or IP4X

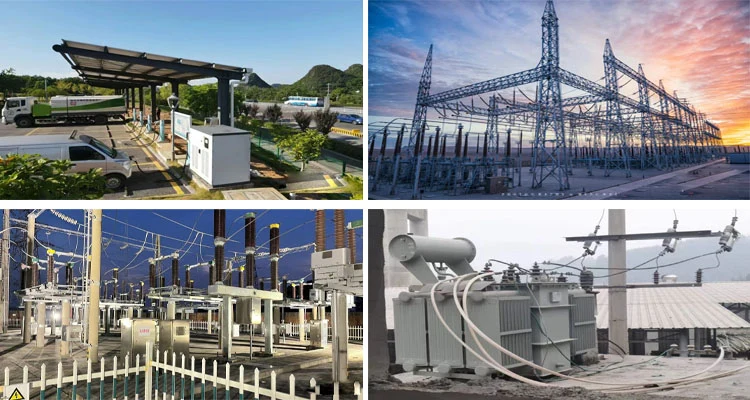

Application scenario

The XGN66-12 type switchgear is suitable for indoor power distribution systems with three-phase AC 50Hz single busbar sectioning ranging from 3.6kV to 12kV. It is mainly applied in the following places:

Power plants are used for receiving and distributing electrical energy. Substations serve as medium-voltage distribution equipment, achieving the conversion and distribution of electrical energy. Factories and mines meet the power demands in industrial production processes. XGN66 12kV Three Phase AC Switchgear provides reliable power supply for commercial and residential buildings. Switching stations and ring-main units are combined to achieve flexible distribution and monitoring of power.

FAQ

Q: Are you a trading company or manufacturer?

A: We are a factory of more than 20 years' experiences.

Q: Is it all right to make customer's own brand name?

A: Sure, with your authorization of brand. We accept OEM service.

Q: How do you control the quality?

A: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.

Q: How long does it take for me to get the quotation?

A: For customized products, we will quote after you provide the requested product details within 48 hours because we need the time to calculate the cost, but we will quote as soon as possible.

Q: Why should I choose your company?

A:Superior quality and low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, good reputation and credit.

Q:What's your main products?

A: Drop out fuse ,lightning arrester, compact transformer, substation, HRC Fuse ,fuse base, power cable ,all kinds of high-voltage and low-voltage goods and related products.

Q: Can I get some samples?

A: Yes, sample order is available for quality check and market test.

Q: What’s your payment terms?

A: We usually accept all kinds of payment terms, T/T, L/C, Western union, Cash.

Q: What’s your warranty terms?

A: We offer 24 months warranty terms.

Q: Do you have the products in stock?

A: Depends on your request, we have standard models in stock. Some special product and big order will be newly produced according to your order.

Q: What do you have for certificate?

A:ISO9001, ISO14001, Type test, CESI etc.

Q:Can we visit your company?

A:Yes, for sure, you are welcome to visit our company.
