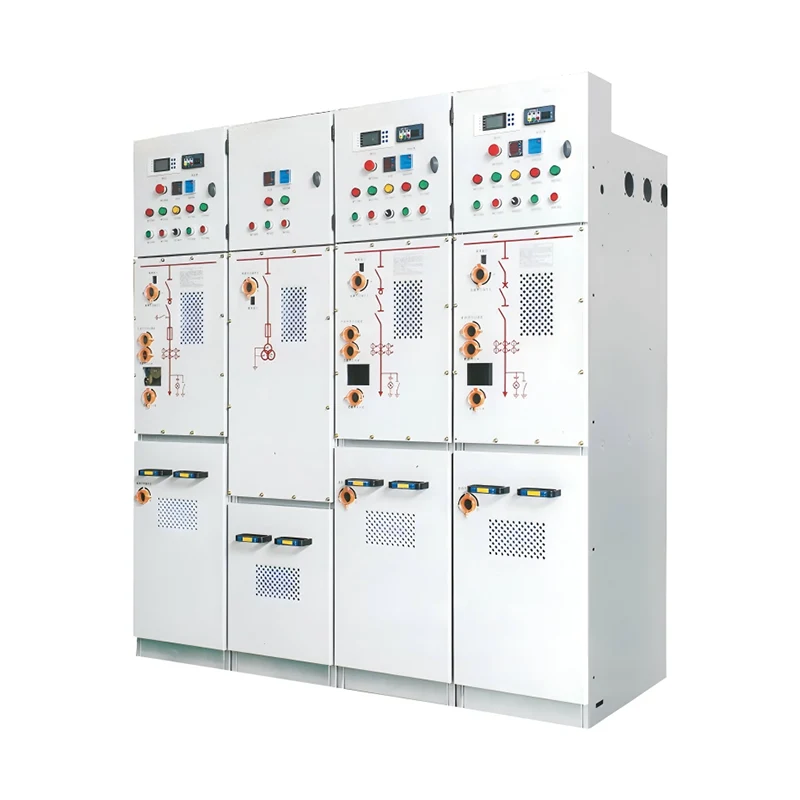

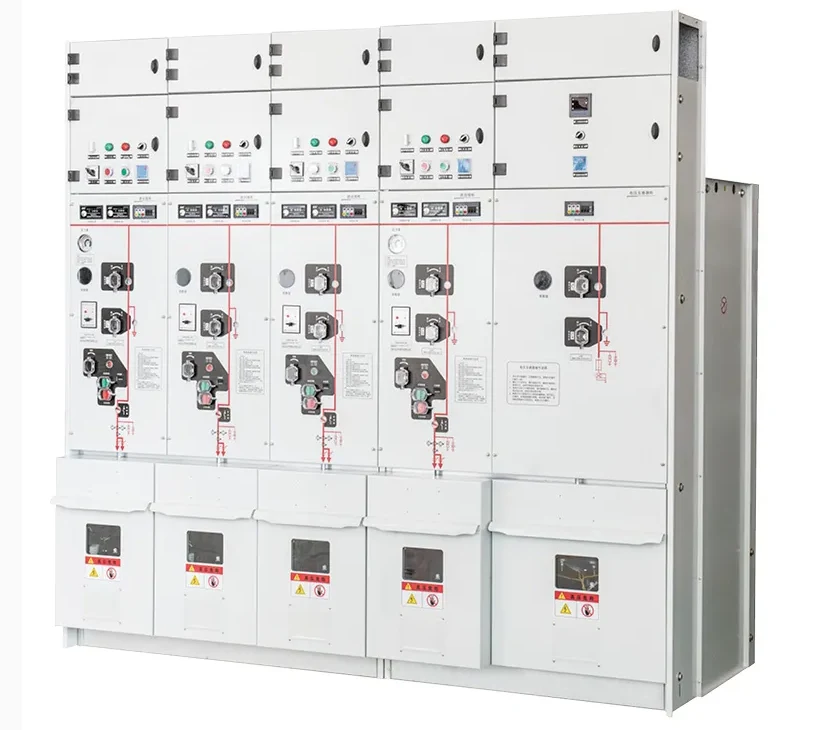

36KV SRM6 SF6 Gas Insulated Ring Main Unit

Anyone who has spent time in a substation knows the difference between equipment that causes problems and equipment that simply functions without issues. The Ring Main Unit firmly belongs to the latter category. There is a certain quiet confidence that comes from knowing the SF6 seal is intact. The 36KV SRM6 SF6 Gas Insulated Ring Main Unit's smooth, unyielding surface suggests airtight integrity. The contacts are clean, polished to a mirror sheen that reflects the soft glow of indicator lights, and the mechanism won't surprise you during a switching operation. There are no sudden hisses, no unexpected delays, just a steady, reliable hum that blends into the substation's rhythmic background.Installation is straightforward, a precise process where each component fits into place with satisfying clicks. Once the covers are on, interaction with this equipment is mostly done, except for the occasional status indicator check—a quick look at the steady green glow and a silent nod of approval. This hands-off relationship frees up valuable technician hours for more strategic work elsewhere in the network, rather than tying them down with recurring service intervals that require wrenches, grease, and endless troubleshooting.It is not flashy, lacking the bold colors or dramatic displays of some competitors. But after a few months of trouble-free operation, most engineers will tell you they wouldn't trade that reliability for anything else. It's the trusty companion in the shadows, ensuring power flows smoothly, a silent sentinel of stability at the heart of the grid.

Parameters

Product advantage

The maintenance-free nature of the 36KV SRM6 SF6 Gas Insulated Ring Main Unit stems from something deeper than clever engineering. It is chemistry doing the heavy lifting. SF6 gas simply does not break down under normal electrical loads, nor does it react with the metal surfaces it surrounds. Decade after decade, that sealed stainless enclosure stays welded tight, keeping humidity and airborne contaminants permanently locked out. So, the arcing contacts inside this compact assembly remain as clean as the day they left the factory floor. No oxidation, no pitting, no gradual decay to manage.

From a practical standpoint, the equipment asks for almost nothing once commissioned. A quick visual glance now and then is about all the attention it requires. There are no lubrication checklists, no torque verification routines, and certainly no scheduled tear-downs.Spread across a design life that comfortably exceeds thirty years, the economics become quietly compelling. Every hour of labor not spent wrenching on the gear and every outage event that never happens adds up to a total cost of ownership that looks leaner with each passing year. It is the kind of reliability that does not demand recognition; it simply delivers.

Product operation procedure

Power On Procedure

Before approaching the 36KV SRM6 SF6 Gas Insulated Ring Main Unit, proper preparation is essential. Put on qualified insulated gloves and boots. Then, verify the switching order against the actual equipment nameplate number and location. Visually inspect the exterior for any abnormality and confirm that the live line indicator reads normal.Begin by opening the earthing switch. Rotate its handle counter - clockwise until the mechanism clearly registers the open position, and both mechanical flags and electrical signals confirm full disconnection.Next, close the load break switch by turning its handle clockwise or pressing the green close button if motorized. Observe the voltage presence indicators to verify three - phase continuity. Once all three indicators illuminate steadily, the switching sequence is complete.Finally, log the energization time, operator name, and final equipment status in the operations record and notify downstream personnel or connected users that power has been restored.

Power Off Procedure

Start by donning the required insulated protective gear and confirming the switching plan details. Check the assembly for any abnormal operating conditions before proceeding.Press the red trip button or manually move the load break switch handle to the open position. Watch for the voltage indicators to extinguish fully, signaling successful isolation of the circuit.Next, secure the earthing switch by rotating its handle clockwise until it reaches the fully closed ground position. Verify that the earthing blade has engaged completely, with mechanical flags and electrical readouts both confirming the grounded state.After grounding is established, hang a warning tag reading "Do Not Close - Equipment Under Maintenance" on the operating handle or cabinet door.

Complete the process by recording the outage timestamp, operator identity, and all safety measures applied in the official logbook.

Certifications & Qualified

FAQ

1. Who are we?

We are based in Zhejiang, China. Since 2020, we have been selling to Western Europe (40.00%), Southeast Asia (25.00%), the Middle East (20.00%), and Africa (15.00%).

2. How can we guarantee quality?

There is always a pre - production sample before mass production;

there is always a final inspection before shipment.

3. What can you buy from us?

Power Distribution Equipment, Low Voltage Switchgear, Electrical Control Panels, and Control Cabinet.

4. Why should you buy from us rather than from other suppliers?

- Eight years of professional experience in industrial automation.

- One - stop service provider - from component supply to control panel customization and assembly.

- Provide OEM/ODM services.

5. What services can we provide?

- Accepted Delivery Terms: FOB.

- Accepted Payment Currency: USD.

- Accepted Payment Type: T/T.

- Languages Spoken: English, Chinese.
