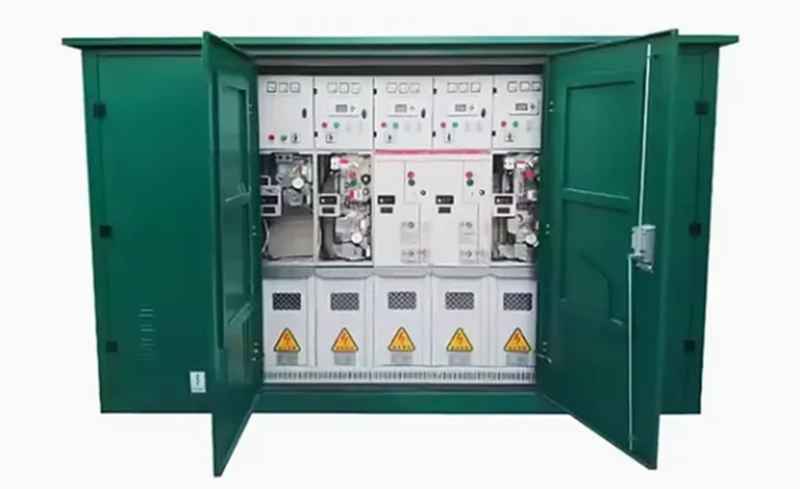

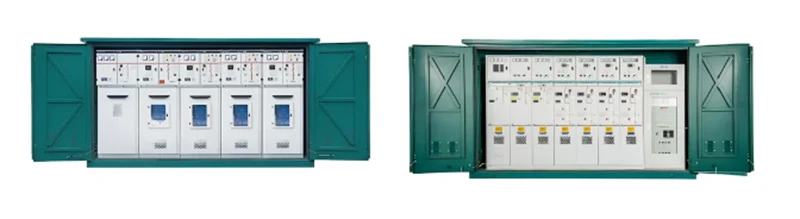

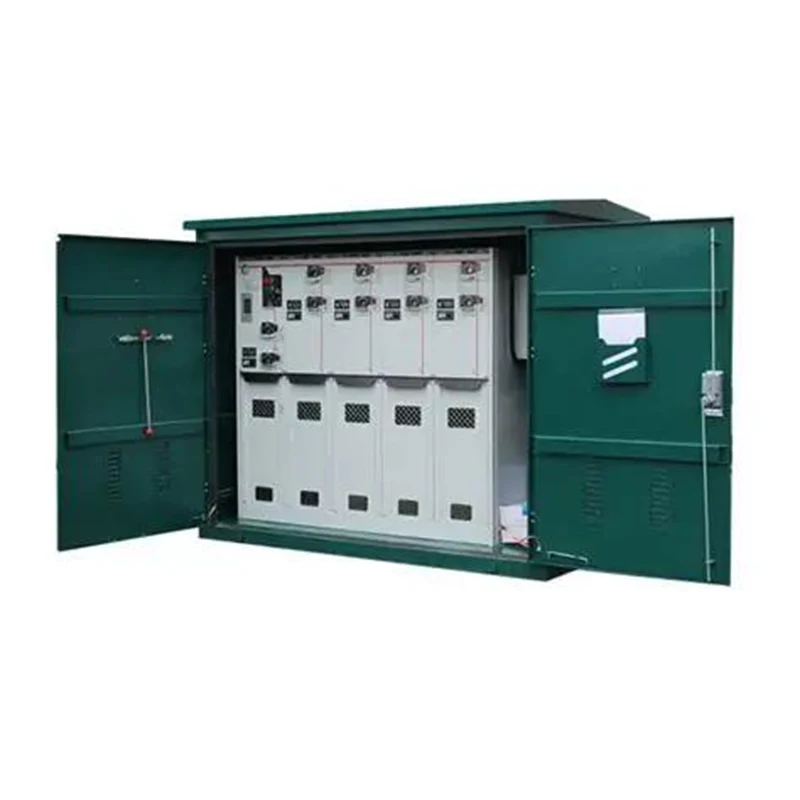

Outdoor Box-Type Intelligent Switchgear

The internal architecture of this weatherproof assembly is organized into discrete, steel - partitioned compartments. These compartments include a busbar chamber, a load - switching or circuit - breaker section, a cable - termination zone, an operating - mechanism bay, an interlock assembly, a low - voltage control compartment, and dedicated metering provisions.

Each zone is physically isolated by robust steel barriers, ensuring that any fault condition remains contained without cascading into adjacent sections.The busbar chamber occupies the upper region of the Outdoor Box-Type Intelligent Switchgear. In this chamber, main conductors are joined in a continuous horizontal run spanning the entire switchgear lineup. This horizontal bus arrangement simplifies future extension work and allows additional panels to be integrated with minimal rework.Overall, the compartmentalized layout of the enclosure enhances both operational safety and long - term serviceability.

Parameters

The low - voltage interlock compartment also serves as the control interface for the entire assembly. In this section, a spring - charged operating mechanism works in concert with mechanical interlocks and clear position indicators to guide safe switching sequences.Additional options include auxiliary contacts, shunt trip coils, emergency trip actuators, capacitive live - line displays, key - based interlocks, and motorized operating drives.The chamber also provides ample space for housing control circuitry, recording instrumentation, and protective relay packages.Notably, the Outdoor Box - Type Intelligent Switchgear in its 750mm wide configuration comes with two identical low - voltage bays, allowing substantial accessory expansion without increasing the footprint. This dual - chamber arrangement within the unit ensures sufficient capacity for even the most comprehensively equipped distribution schemes.

Technical Specifications:

 - Rated voltage: 12 kV

- Rated current: 630 A

- Breaking capacity: 630 A (20 kA short - circuit withstand)

- Rated frequency: 50 Hz

- Enclosure protection level: IP4X

Key Features:

Space-Saving: 60% smaller footprint than conventional stations

Plug-and-Play: Pre-assembled modules reduce installation time by 70%

Smart Ready: Built-in communication ports for SCADA integration

Durable: Stainless steel construction (-25°C to +40°C operation)

Flexible: Configurable with breakers, PTs, meters, and USP

Our Advantage

The low voltage interlock compartment doubles as the control interface for the entire assembly within this section a spring charged operating mechanism works in concert with mechanical interlocks and clear position indicators to guide safe switching sequences additional options include auxiliary contacts shunt trip coils emergency trip actuators capacitive live line displays key based interlocks and motorized operating drives the chamber also provides generous real estate for housing control circuitry recording instrumentation and protective relay packages notably the Outdoor Box-Type Intelligent Switchgear in its 750mm wide configuration ships with two identical low voltage bays allowing substantial accessory expansion without footprint penalty this dual chamber arrangement within the unit ensures ample capacity for even the most comprehensively equipped distribution schemes

1.Our factory continue to insist to customers oriented and seek development of technology and science.

2.Our products have high quality and the deep love of our customers

3.Our products have passed the ISO9001:2000 quality system certification .

4.We have a strong supply chain and after-sale service.

Certifications & Qualified

FAQ

Q1: What voltage levels does this equipment support?

This outdoor intelligent distribution assembly is rated for medium voltage applications up to 40.5kV with common configurations at 11kV 12kV 24kV and 36kV depending on regional grid standards

Q2: How long is the typical delivery lead time?

Standard configurations ship within four to six weeks while units requiring specialized protection relays or non standard busbar arrangements may extend to eight to ten weeks depending on order volume

Q3: What is the expected service life of the equipment?

The sealed gas insulated core is engineered for a design lifespan exceeding thirty years under normal operating conditions with minimal degradation of internal components over that period

Q4: Does the unit require a dedicated foundation or plinth?

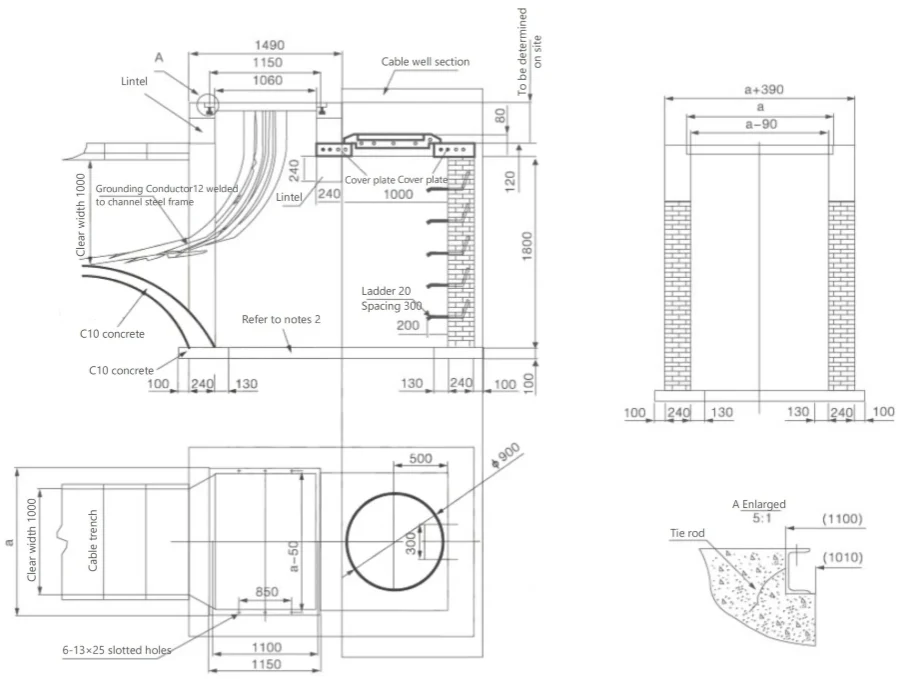

Yes a level concrete pad or raised plinth is recommended to ensure proper cable entry alignment and drainage the footprint and mounting hole pattern are provided with the general arrangement drawing

Q5: Is on site commissioning support available?

Yes JUCEG offers remote technical guidance as standard with optional on site supervision and commissioning services available upon request at the time of order placement
