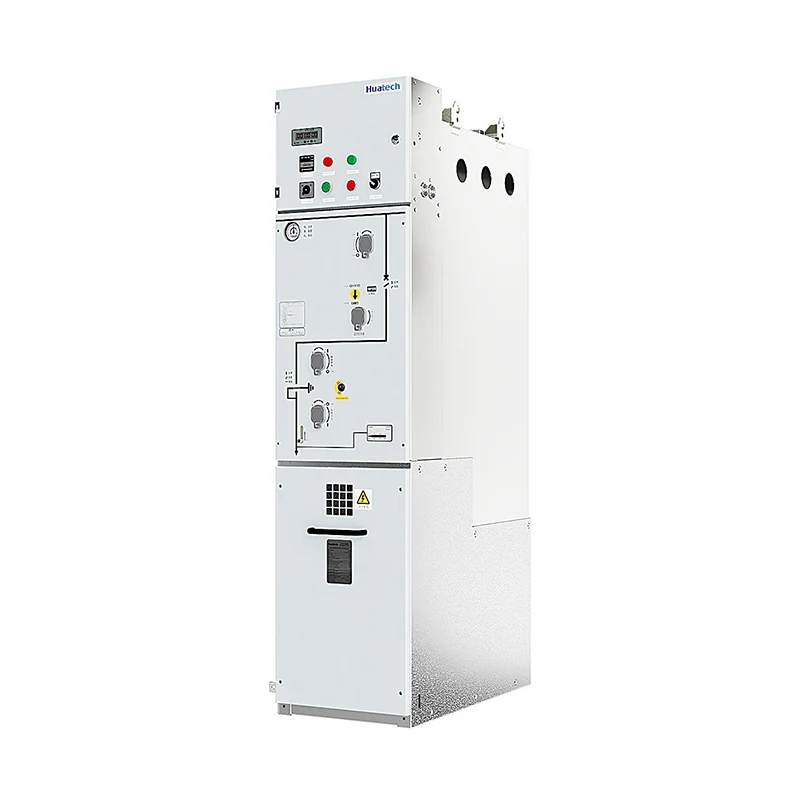

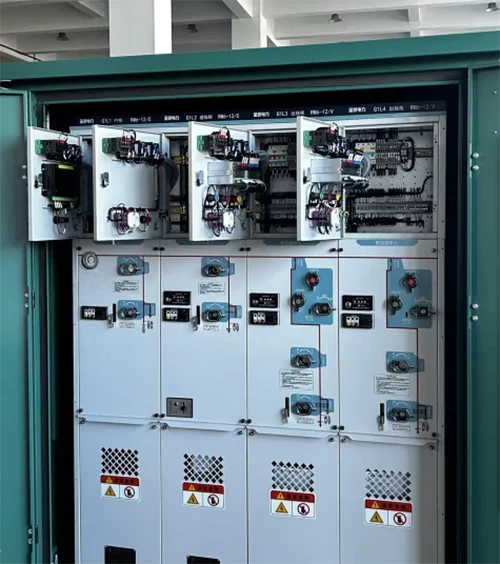

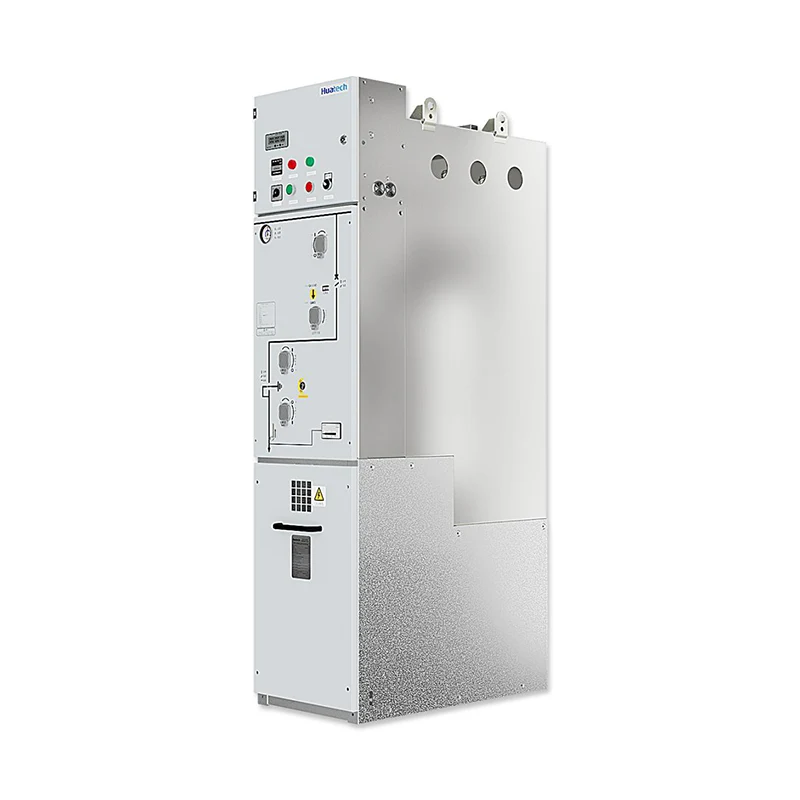

SM6 SF6 Gas Insulated Compact RMU

Most switchgear makes a grand entrance and then gradually fades into a maintenance schedule filled with appointments. It's the kind of gear that demands attention at the most inopportune moments. The SM6 Compact RMU takes the opposite approach entirely. This unassuming unit arrives quietly, slots into its designated corner, and then proceeds to do absolutely nothing remarkable for the next thirty-plus years. There's no drama, no service calls, no frantic midnight troubleshooting, no panicked searches for spare parts that became obsolete a decade ago. The SM6 SF6 Gas Insulated Compact RMU is just a sealed SF6 chamber minding its own business while the world outside experiences cycles of heat, humidity, and dust. The assembly doesn't seek recognition, doesn't trigger alarms, and doesn't generate paperwork. This isn't exciting equipment, and that's precisely the point.

Parameters

A modular architecture lies at the heart of the assembly, allowing flexible configuration and straightforward installation without excessive site preparation. The fully - sealed SF6 insulation system eliminates internal exposure to moisture and contaminants, delivering reliable hands - off operation year after year. Integrated mechanical interlocks provide an essential layer of operational safety, preventing missteps during switching sequences. Meanwhile, high - grade internal components ensure stable long - term performance across medium - voltage distribution networks.The SM6 SF6 Gas Insulated Compact RMU also accommodates a range of functional configurations, including load - break switches, vacuum circuit breakers, fuse protection schemes, and dedicated metering units. This makes this compact solution adaptable to diverse application demands without compromising its core promise of quiet longevity.

Applications

The Ring Main Unit (RMU) is widely used in compact substations, transformer substations, urban power distribution networks, solar power plants, wind power stations, and industrial power distribution systems.

Product installation steps

Pre-Installation Preparation

Before positioning the SM6 SF6 Gas Insulated Compact RMU, ensure that the installation takes place in calm, dry weather with no blowing sand or precipitation. The relative humidity should remain below eighty percent. The work area must be covered with anti-static dust sheeting, and the floor should be kept clean. Thoroughly inspect the unit. Verify that the SF6 gas pressure and moisture content meet factory specifications. Check all insulating components for cracks or damage, and confirm that the seals are intact with no reused gaskets. The foundation must pass inspection, with the center distance and height deviations within ten millimeters and the embedded bolt center variance no greater than two millimeters. The concrete strength should be fully cured and verified.

Installation Steps

Lift the sealed assembly into position using appropriate rigging and a crane. Adjust the leveling bolts until the vertical alignment falls within the manufacturer's tolerance. Secure the cabinet according to the factory-numbered sequence, tightening all bolts with a calibrated torque wrench. Use no more than three shims per point, with the total stack thickness under ten millimeters. Connect the incoming and outgoing cables per the electrical schematic. For plug-in terminations, ensure that the contact pin seats fully inside the bushing to prevent tracking, and confirm that the stress cone fits snugly without over-compression. Fill the gas compartment with dry SF6 to the specified pressure, then perform a leak check. All metallic parts must be bonded to a reliable ground connection. The sealing groove should be clean and free of scratches. Apply the sealant carefully, avoiding migration into the gas side. The welded tank typically achieves an annual leakage below zero point five percent. Final testing includes insulation resistance measurement, power frequency withstand voltage verification, and functional confirmation of the three-position switch mechanical interlock. Never open the gas-filled chamber unless authorized and guided by the manufacturer. The equipment room should feature low-level ventilation with air exchange no less than four times per hour, and personnel working in confined areas are advised to carry SF6 and oxygen detection monitors.

Work shop

Certifications & Qualified

FAQ

Q1: What kind of warranty coverage is provided?

Standard warranty runs twelve months from commissioning or eighteen months from shipment whichever occurs first extended terms available upon request

Q2: How easy is it to source spare parts?

Critical spares are kept in regional inventory with most common items shipping within three to five working days

Q3: What routine maintenance is actually required?

Visual inspection of pressure gauges and cable terminations annually operating mechanism checks every few years depending on switching frequency

Q4: Can this unit be expanded later if load grows?

Yes modular architecture allows additional panels to be added with minimal rework provided space was reserved in the initial layout

Q5: What certifications does this equipment carry?

The assembly holds ISO 9001 certification plus type test reports aligned with relevant IEC standards full documentation available upon request
