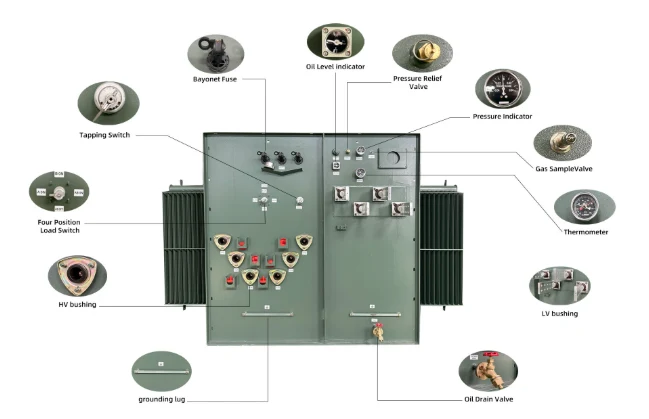

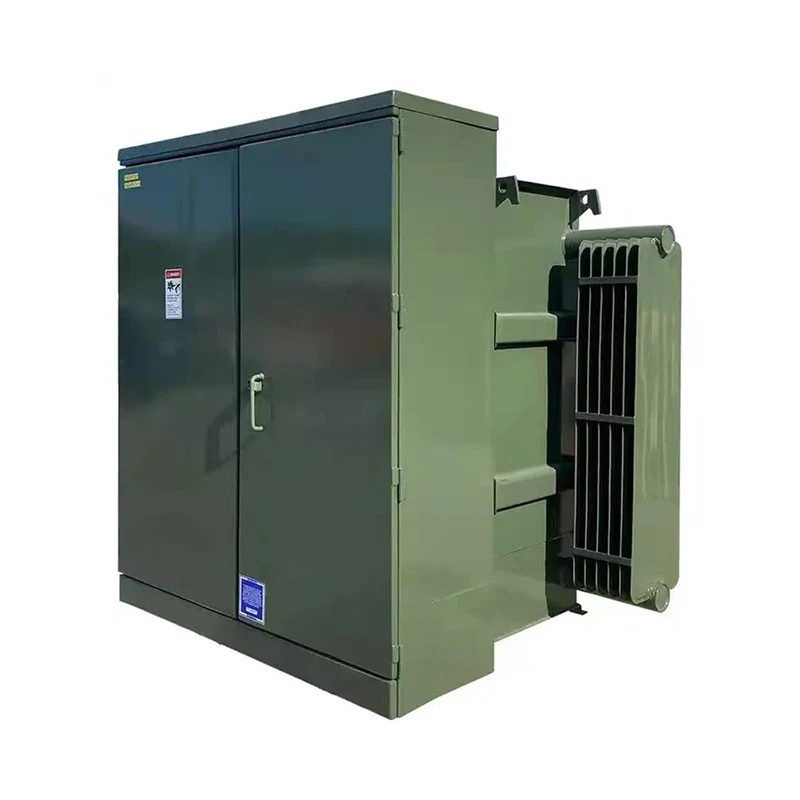

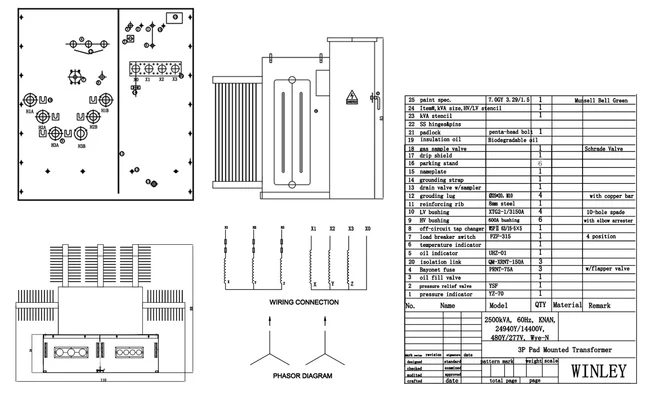

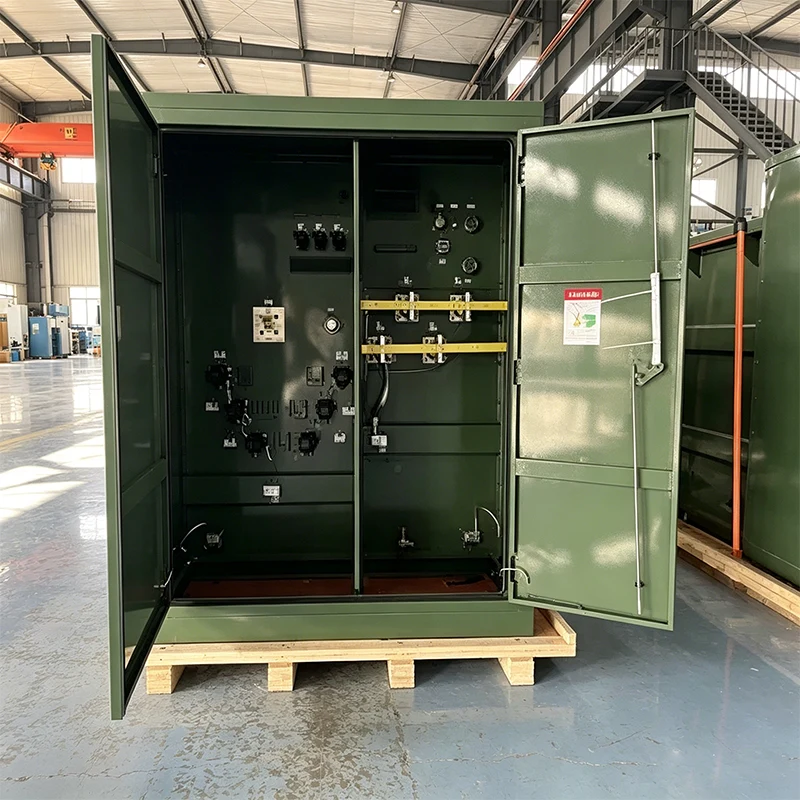

JUCEG is a manufacturer and supplier specializing in supplying 3750kVA Pad Mounted Transformer.The compact design integrates the transformer body, high-voltage load switch, fuse and other components within a sealed oil tank. The volume is approximately 1/10 to 1/5 of that of a traditional substation, significantly reducing the floor space. The 3750kVA Pad Mounted Transformer oil tank adopts a fully sealed structure. The transformer oil has excellent insulation and heat dissipation properties, ensuring the safe and reliable operation of the equipment. At the same time, the fully insulated design eliminates the need for insulation distance, reliably ensuring the safety of personnel. The configuration of the high-voltage and low-voltage sides can be customized according to user requirements. For example, the high-voltage side can be equipped with different voltage levels of incoming lines, and the low-voltage side can be equipped with metering, incoming line, outgoing line, capacitor, etc. compartments.
|
Parameter |
Specification |
|
Rated Capacity |
3750 kVA |
|
Phases |
Three-phase |
|
Primary Voltage |
12.47kV, 13.2kV, 13.8kV, 15kV, 21.7kV, 34.5kV (configurable) |
|
Secondary Voltage |
480Y/277V, 208Y/120V, 400Y/230V, 600Y/347V (configurable) |
|
Frequency |
50/60 Hz |
|
Cooling Method |
ONAN (Oil Natural Air Natural) / KNAN |
|
Temperature Rise |
65°C (standard) |
|
Impedance Voltage |
|
|
Vector Group |
Dyn11, Yyn0, Dyn1 (configurable) |
|
Winding Material |
Copper or Aluminum |
|
Core Material |
Cold-rolled silicon steel (CRGO) |
|
Insulating Fluid |
Mineral oil or FR3 (fire-resistant) |
|
Fluid Volume |
~717 gallons (2,714 liters) |
|
Enclosure Type |
NEMA 3R (outdoor), IP24 rated |
|
Cabinet Depth |
24" (610mm) for 2000-3750kVA range |
|
Specification |
Value |
|
Dimensions (W × D × H) |
4080 × 2060 × 2680 mm (161" × 81" × 105") |
|
Total Weight (with oil) |
~14,400 kg (31,746 lb) |
|
Dry Weight (without oil) |
~2,762 lb (1,253 kg) |
|
Oil Weight |
~5,342 lb (2,423 kg) |
Compared with traditional civil construction substations, it has saved the investment in funds, time and space for the distribution room. The factory pre-assembles the equipment, and the on-site installation is simple and quick, shortening the construction period. 3750kVA Pad Mounted Transformer adopts a fully sealed and fully insulated design, reducing the maintenance workload and lowering the operation and maintenance costs. The external decoration is in the form of wooden structure or stainless steel structure, which is elegant and decent and coordinated with the surrounding environment.
1.Why choose us?
Specializing in the design and production of transformers for more than 20 years. According your needs we can customize transformer with different voltages, capacities, and frequencies.
2. How to ensure product quality?
All products provide 24 months warranty services
3. Do you accept FAT(Factory Acceptance Test） ?
Yes. It’s available. We are responsible for each set transformer’s testing.
4. What time I can get the quote ?
We ususally quote within 24 hours after we get your inquiry .
5.Can you provide power system design solutions?
Of course, we provide free design solutions and installation services.
