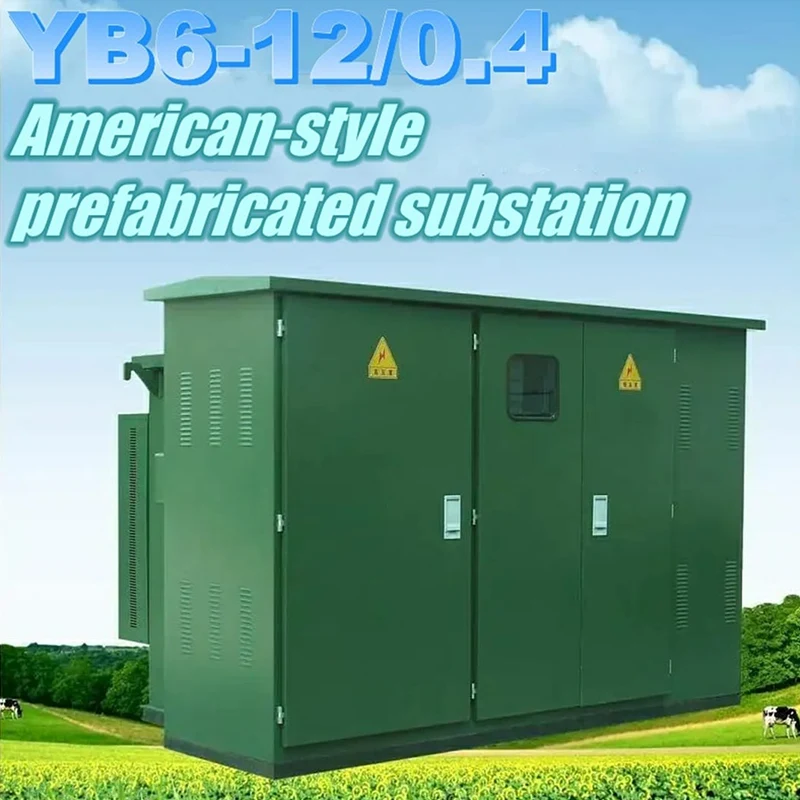

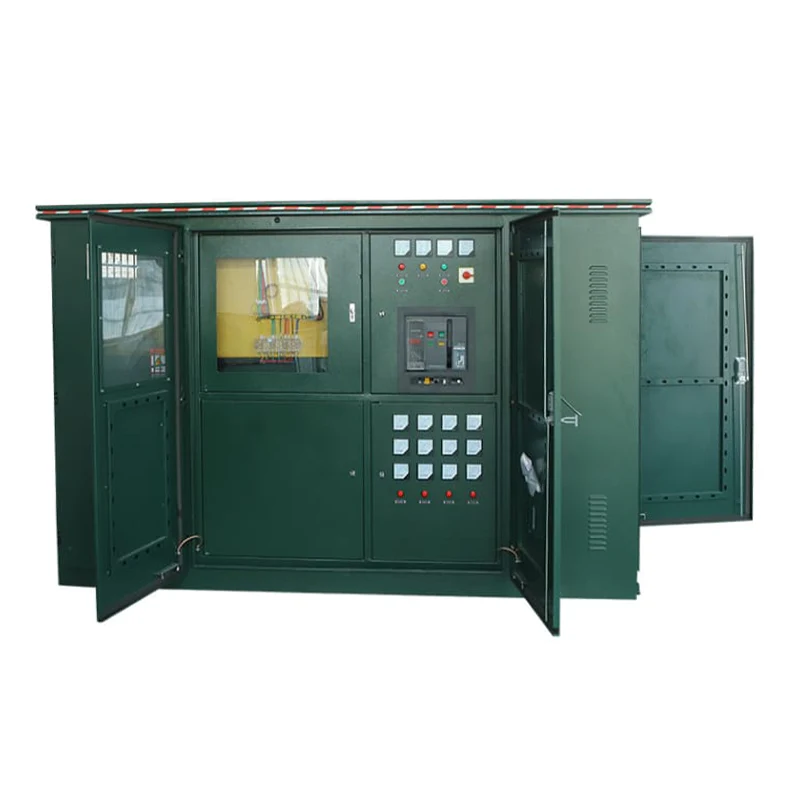

YB6 33kV American Prefabricated Box Substation

As a professional high quality JUCEG YB6 33kV American Prefabricated Box Substation manufacturer,we will offer you the best after-sale service.With an extremely small footprint, it is highly suitable for urban applications; the fully insulated and sealed design eliminates exposed live components; the dual fuse protection and ring/terminal flexibility enhance the continuity of power supply; compared to traditional substations, the installation and maintenance costs are lower; pre-assembled and tested in the factory, it can be directly used for on-site commissioning; YB6 33kV American Prefabricated Box Substation offers advantages such as intelligent monitoring, SCADA integration, and a variety of shell material options.

Performance Characteristics

1. Fully insulated, fully sealed, with no need for frequent maintenance, ensuring reliable protection of personal safety;

2. Compact structure, with a volume only 1/3 - 1/5 of that of an equivalent European transformer, and a low height;

3. YB6 33kV American Prefabricated Box Substation can adopt a box-type structure to avoid contamination of the transformer oil in the tank;

4. The high-voltage side uses double-fuse full-range protection, significantly reducing costs: it can be used in a ring network or as a terminal, and the cable head can be quickly unplugged at a 200A load current;

5. The box body uses a honeycomb-type double-layer composite plate, with functions of heat insulation and heat dissipation;

6. An electronic phase-loss protector is added to the low-voltage side. When abnormal voltage occurs in the system, it can quickly disconnect the main incoming switch;

7. The high-voltage side uses oil-immersed load switches or SF6 load switches, which can be electrically upgraded to lay the foundation for distribution network automation;

8. Use oil-immersed S9 or more superior S11 series transformers;

Working Environment Conditions

Transportation:

The factory-issued substations should be filled with 25# (or 45#) transformer oil as indicated by the oil level gauge in the oil tank. During transportation and handling, the substation must not be inverted or flipped, and parts must not be struck, nor should it be subjected to strong vibration.

When the YB6 33kV American Prefabricated Box Substation is being lifted and moved on-site, special attention should be paid. The lifting hook should be attached to the lifting hook of the oil tank, and the lifting should be carried out slowly to avoid damaging the surface paint of the substation with the steel wire rope, and even causing the center of gravity of the entire substation to shift, tilt, or fall.

Installation:

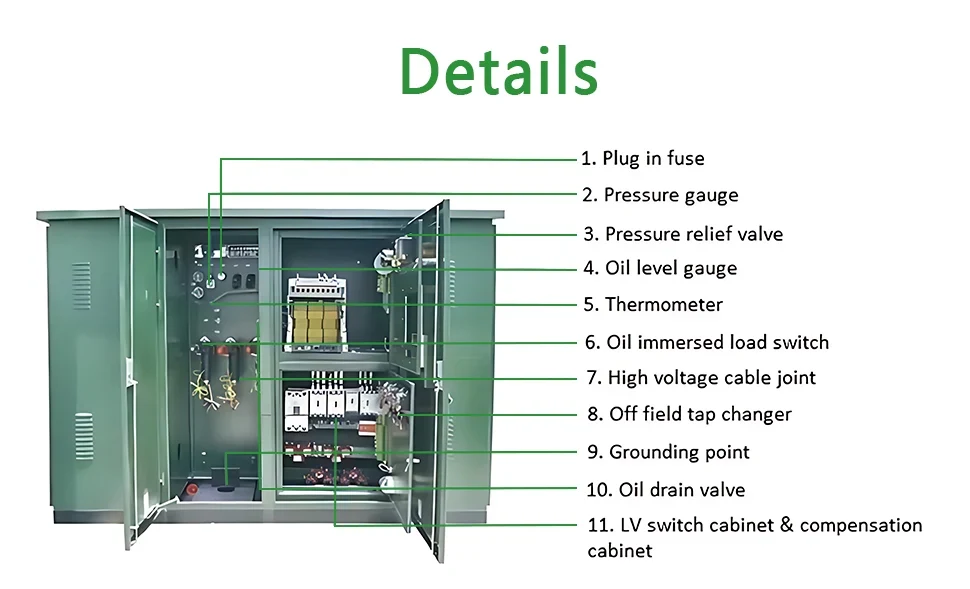

When the substation is installed on-site, attention should be paid to the protection of the surface paint of the cabinet. It is not allowed for pressure gauges, oil level gauges, thermometers, handles of plug-in fuses, and insulation bushing elements to collide, have cracks, etc., and the screws should not be loose.

Remove all dust and dirt from the outside of the substation, the inside of the cabinet door, and the surface of the insulation bushing.

Check whether the nameplate data and product certificate of the substation match the order form, and check whether the documents and spare parts are missing according to the packing list.

The civil construction drawings of the substation's cables and incoming/outgoing lines are shown in the figure.

Maintenance:

The factory-issued products have undergone strict assembly and adjustment, and do not need to be disassembled during installation to avoid affecting performance. Maintenance is limited to the following situations:

Conduct a sample analysis of the transformer oil once a year;

If the oil level drops, replenish it promptly. The oil grade should be the same as that in the tank;

After the fuse blows, the cause should be identified, and when replacing the fuse core, pay attention to its specification and model should be the same as the original specification and model.
