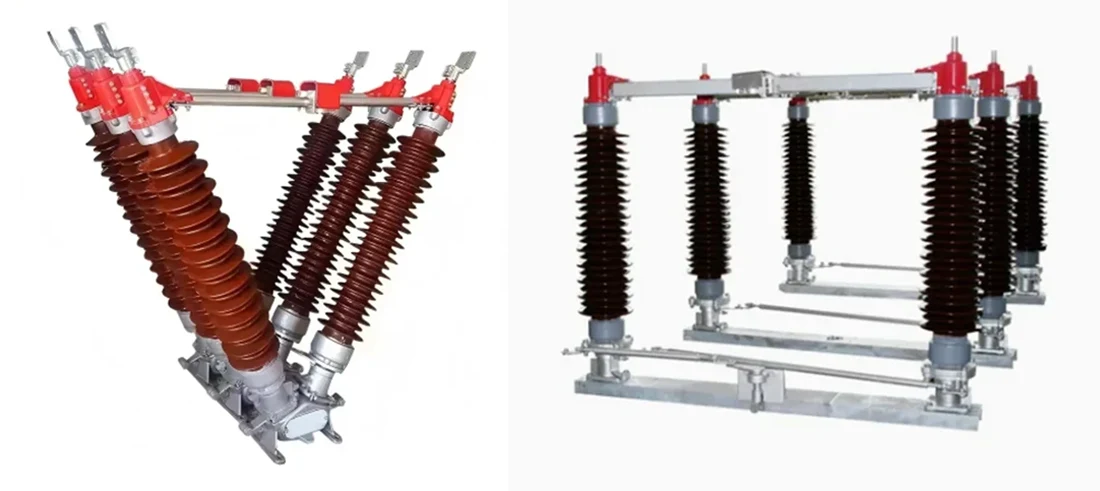

GW4 220kv Outdoor Load Break Isolating Switch

JUCEG outdoor AC disconnect switches are designed for no-load current switching in high-voltage lines, maintenance of high-voltage busbars and circuit breakers, and electrical isolation of high-voltage circuits. GW4 220kV Outdoor Load Break Isolating Switch boast an advanced structure, exceptional corrosion resistance, convenient operation, safe and reliable performance, and stable electrical and mechanical characteristics. When the main switch is open, a visible insulation distance is provided to ensure compliance with safety requirements. The operating mechanism is available in manual (utilizing CSA mechanism) or electric (utilizing CJ11 mechanism) configurations. The main blade is constructed from copper with thick silver plating on the contacts; connection terminals employ multi-layer conductive flexible connectors; the grounding switch features aluminum alloy conductive tubes with thick silver-plated copper contacts. All exposed steel components undergo hot-dip galvanization or Dacromet coating treatment.

Parameters

Our Strengths

Best Quality Industrial Valve Solutions For You

JUCEG offers a 18-month post-delivery warranty or a 12-month post-installation warranty for all supplied switches.

The general delivery period is approximately 8 weeks, with the use of efficient production processes and standardized rapid delivery procedures.

With A quality but cost-effective supply chain, we offer client with reasonable price and low aftersales cost, to build a healthy and long term partnership.

From early bidding to final shipment we have a professional team standby to support client on commercial, technical, quality and transportation issues.

Industrial Applications

Petrochemical Industry

In self-provided power stations or high-voltage distribution rooms, this device is used to isolate critical loads, such as rectifier transformers and compressor motors, to prevent accidental power supply that could cause personal and equipment accidents.

Power Industry

The GW4 220kV Outdoor Load Break Isolating Switch is used to isolate the generator outlet, the main transformer and the high-voltage plant power supply. During equipment maintenance, it cuts off the connection with the live system to ensure the safety of maintenance work.

Traction Substations

The traction substations used in electrified railways enable segmented control and isolation of the power supply arms of the catenary, ensuring the safety of power-off operations on the catenary.

Environmental Protection Sector

In a dual-circuit power supply system, it is used for bus switching and power isolation, enhancing power supply reliability and supporting continuous operation.

Environmental Conditions

The operating environment of the GW4 220kV Outdoor Load Break Isolating Switch should meet  environmental temperature, the operating temperature should not exceed +40°C or fall below -15°C. During storage and transportation, it can withstand a low temperature of -30°C.The altitude of the installation and usage location should not exceed 1000 meters. The seismic intensity of the installation area should be controlled at 8 degrees or below. At the same time, the wind pressure of the environment where the equipment is located should be ≤ 700 Pa.In addition, this switch is strictly prohibited from being deployed in places with fire and explosion hazards, severe pollution, chemical corrosion, and strong vibration.

Advantages and Benefits

• Compact design

• All steel parts either in stainless steel or hot-dip galvanized

• Solid and stable base frame

• Main contact with icing protection

• Insulators available in porcelain or alternatively in silicone

• Minimal sag for the line-connection thanks to the two fixed terminals

• Completely maintenance antirust AL alloy -Arc chamber

• Switching-off procedure without external arc

• Short circuit making capacity under specific conditions possible

• Fixing on the supporting structure either by clamping (free setting) or screwing (holes in the base frame)

• Easy on-site installation and setting

• High reliability: up to 1'000 cycles (depending on the making current)

• All conducting parts either silver, nickel or tin-plated

• Practically maintenance-free
