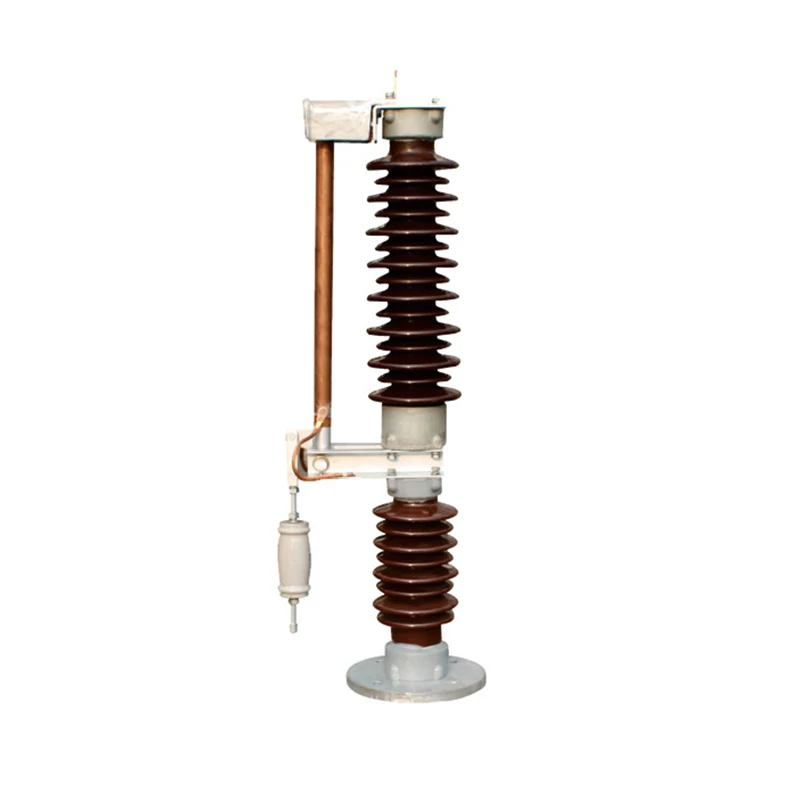

Customized Gw8 Outdoor High Voltage Isolating Switch factory– Reliable OEM/ODM suppliers: great quality, fair prices.Our GW8 Isolating Switch is like a loyal steel guardian, relying on the isolating switch robust capabilities to become the preferred choice for numerous power engineering projects. The outdoor environment is complex and changeable, with high temperatures, heavy rainfalls and sandstorms being common occurrences. The design of the Gw8 Outdoor High Voltage Isolating Switch is precisely tailored to accommodate these demanding conditions. The switch adopts an integrated high-strength frame structure. The contact parts of the switch are made of silver-copper alloy, which helps to extend the service life. Furthermore, its operating mechanism is ingeniously designed, and the opening and closing movements are smooth and effortless.
|
Item |
Unit |
GW8-72.5 |
GW8-126 |
|
Rated voltage |
kV |
72.5 |
126 |
|
Rated Current |
A |
400, 630, 1250 |
400, 630, 1250 |
|
Rated short-time withstand current |
KA |
8, 20, 31.5 |
8, 20, 31.5 |
|
Rated peak withstand current |
KA |
20, 50, 80 |
20, 50, 80 |
|
1min power frequency withstand voltage(valid) |
KV |
140 |
230 |
|
Lightning impulse withstand voltage (peak) |
kV |
325 |
450 |
|
Mechanical life |
Time |
2000 |
2000 |
|
Min. insulation gap after switching |
mm |
>675 |
>1050 |
|
Main circuit resistance |
FXQ |
<180 |
<200 |
|
Equipped mechanism |
|
Cs17 (or) CJ6, CK7, Cs14 |
|
|
Unpolar weight |
kG |
160 |
200 |

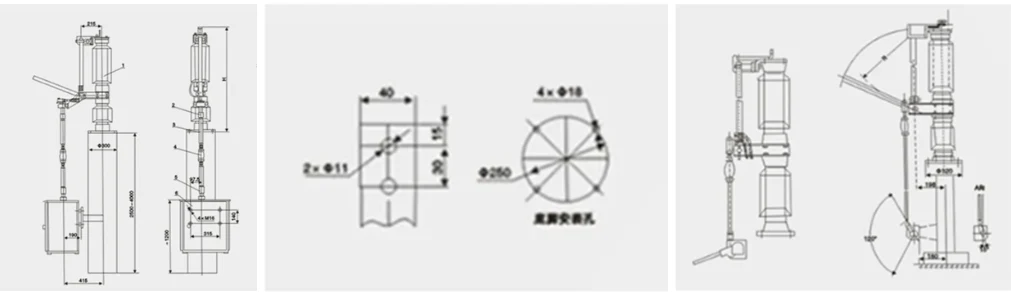

1. GW8 Isolating Switch
2. Joint
3. 32 water gas pipe
4. Insulation rod
5. Joint
6. CJ6 electric operating mechanism
We design and produce this Gw8 Outdoor High Voltage Isolating Switch outdoor high voltage isolating switch with stable performance and standard specifications, perfect for outdoor high-voltage power systems. We fit most power transmission and distribution projects, and are easy to install, matching your existing power equipment directly.
Besides regular urban power grids, we work steadily in harsh outdoor sites like mountain power stations, coastal wind power projects and remote rural power transformation. We resist high humidity, salt spray and extreme temperatures, which most similar switches can’t handle well.
Compared with the products of other suppliers, our Gw8 Outdoor High Voltage Isolating Switch have obvious advantages: Their switches are prone to rust, have poor sealing, and are likely to break down when used outdoors over a long period of time. It requires a lot of time and effort for maintenance. On the other hand, we use good anti-corrosion materials and have a more tightly sealed structure. They can last for a long time and rarely need maintenance. This can help you save maintenance costs in the future. When purchasing in bulk, choosing us is more cost-effective.
Q1: What voltage range do your products cover?
A: Our products cover medium and high voltage levels from 11kV to 123kV, depending on the product type.
Q2: Do you provide IEC type test reports?
A: Yes, selected products can be supplied with complete IEC type test reports.
Q3: Do you support OEM or ODM services?
A: Yes, we offer OEM and ODM services based on technical drawings and project requirements.
Q4: What applications are your products used for?
A: Our products are widely used in power grids, substations, industrial plants, and infrastructure projects.
Q5: How are the products packaged for export?
A: Products are packed with suitable protective materials and can be supplied in cartons, wooden cases, or pallets.
