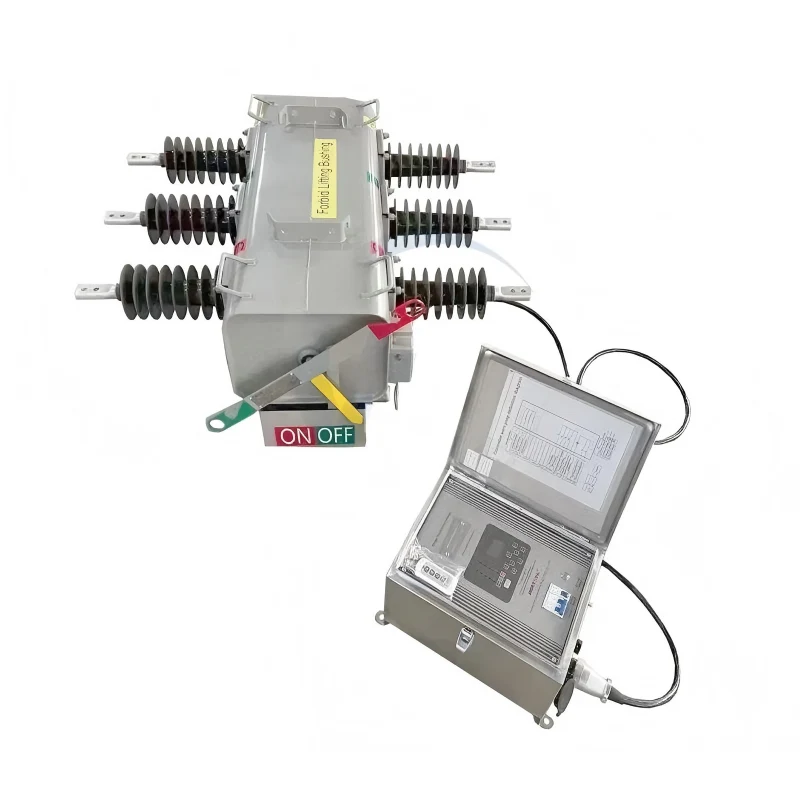

China 36kV Outdoor SF6 Gas Insulated Load Break Switch manufacturers – high-quality OEM/ODM suppliers with competitive pricing!The outdoor load break switch, with SF6 gas insulation, rated voltage can be 12kv, 24kv or 36kv.The 36kV SF6 Load Break Switch can realize remote digital control with a control box and PT. The switch mainly used for breaking and closing current, overloading current, and short-circuit current protection. This LBS adopts mature case type sealing structure for SF6 gas insulation. Therefore, Load Break Switch has excellent sealing performance not to be much less effected by external environment. In addition, 36kV Outdoor SF6 Gas Insulated Load Break Switch has the spring mechanism with chain main transmission and a multi-stage tripping system, which makes this switch qualtiy reliable.
|
Installation |
Fixed |
|
Poles Number |
3 |
|
Type |
Circuit Breaker |
|
Specification |
Rated voltage 24kv |
|
Speed |
Normal Type Circuit Breaker |
|
Origin |
China |
|
Model NO. |
LBS-SF6 |
|
Arc-extinguishing Medium |
SF6 |
|
Type |
Circuit Breaker |
|
Certification |
ISO9001-2000, CCC |
|
Transport Package |
Normal Export Case |
|
Trademark |
JucegElectrical |
|
Item |
Unit |
Data |
|
Rated voltage |
kV |
36 |
|
Rated Current |
A |
630/1250 |
|
Rated Frequency |
Hz |
50/60 |
|
Rated short circuit breaking current |
kA |
12.5/16/20 |
|
Rated short time withstand current(4s) |
kA |
12.5/16/20 |
|
Rated short circuit making current(peak) |
|
31.5/40/50 |
|
Rated peak withstand current |
kA |
50 |
|
Rated power frequency withstand voltage |
kV |
95 |
|
Rated lightning impluse withstand voltage |
kV |
185 |
|
Secondary loop 1 min power frequency withstand voltage |
kV |
2 |
The 36kV Outdoor SF6 Gas Insulated Load Break Switch uses SF6 (sulfur hexafluoride) gas as both the insulating and arc-extinguishing medium. The Switch insulation strength is 2.5 times that of air. The 36kV Load Break Switchcan stably interrupt arcs under a 36kV high-voltage environment, and the arc extinguishes quickly when breaking the load current, effectively avoiding the risk of equipment damage.
The shell is made of high-strength anti-corrosion material, combined with a fully sealed gas compartment. The 36kV Load Break Switchcan operate stably for a long time in extreme temperatures ranging from -40℃ to 60℃, high altitudes, heavy rainfall, and salt spray corrosion and other harsh outdoor conditions.
Supports communication protocols such as Modbus and IEC61850. The 36kV Load Break Switch can be connected to the smart grid platform to achieve remote status monitoring, operation control and fault warning, without the need for on-site personnel.
JUCEG is an innovative enterprise in the field of power transmission and distribution. With the mission of "providing reliable and efficient intelligent electrical solutions for the global energy system", we focuses on the research, production and service of high-voltage electricl-equipment.
Among them, the 36kV Outdoor SF6 Gas Insulated Load Break Switch, as one of the core products, with its outstanding insulation performance, stable load breaking capability, and design suitable for complex outdoor conditions, has fortified the defense line for the secure and stable operation of medium and high voltage power distribution networks.
1. Are you a manufacturer or a Trade Company?
We are professional manufacturer, founded in 2015.
2. How long is your products warranty ?
The warranty period of our products is 18 months.
3. What is the material of your products?
The plastic is class VO of inflaming retarding.
4. How about inspection?
We have the whole inspection system from raw material to endproducts include temperature rise test, salt spraying test conductortype test, mechanical life test and so on.5. What is payment terms?
T.T, Paypal, Western Union and L/C is acceptable.
