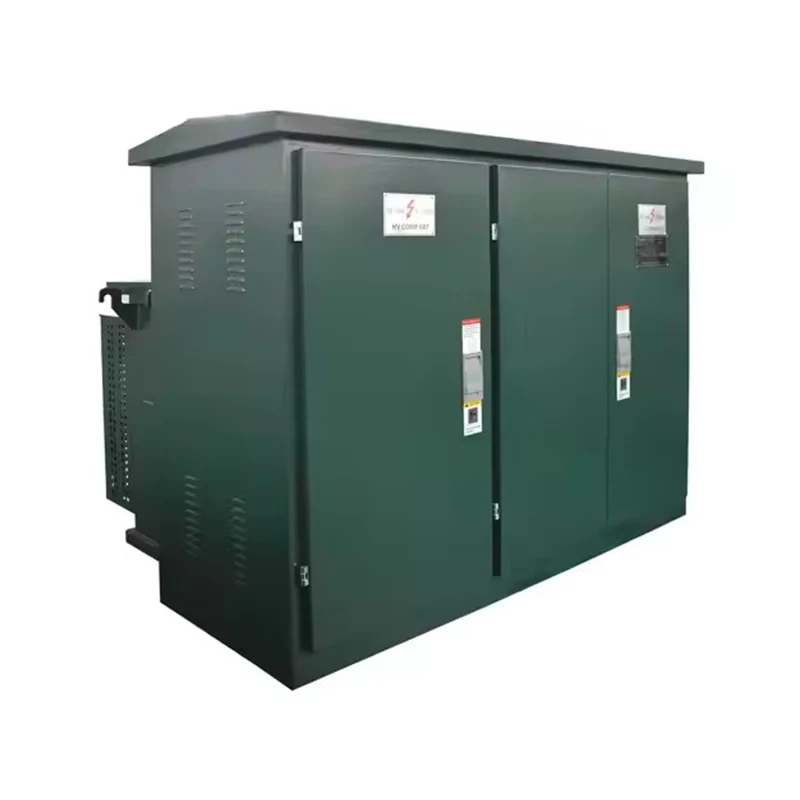

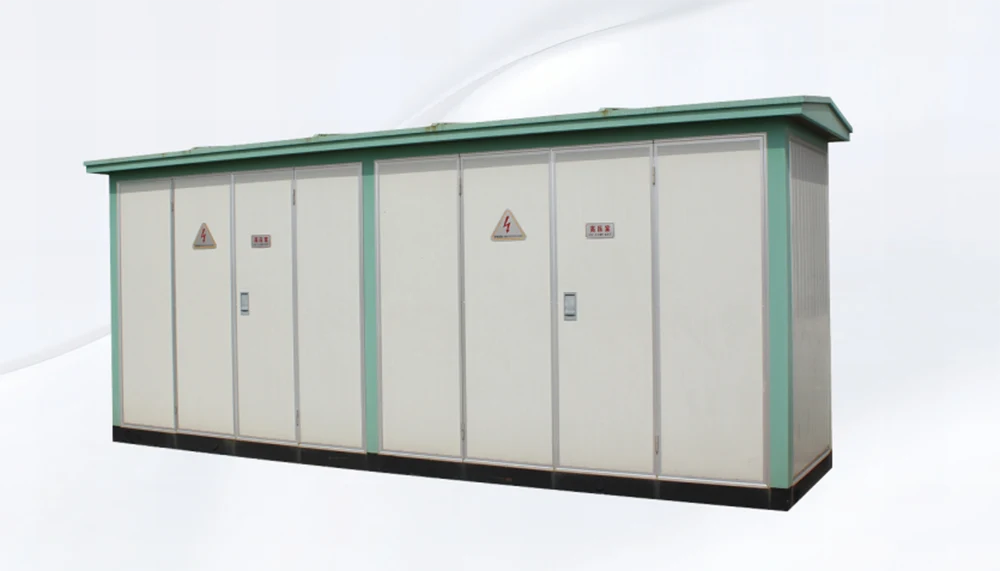

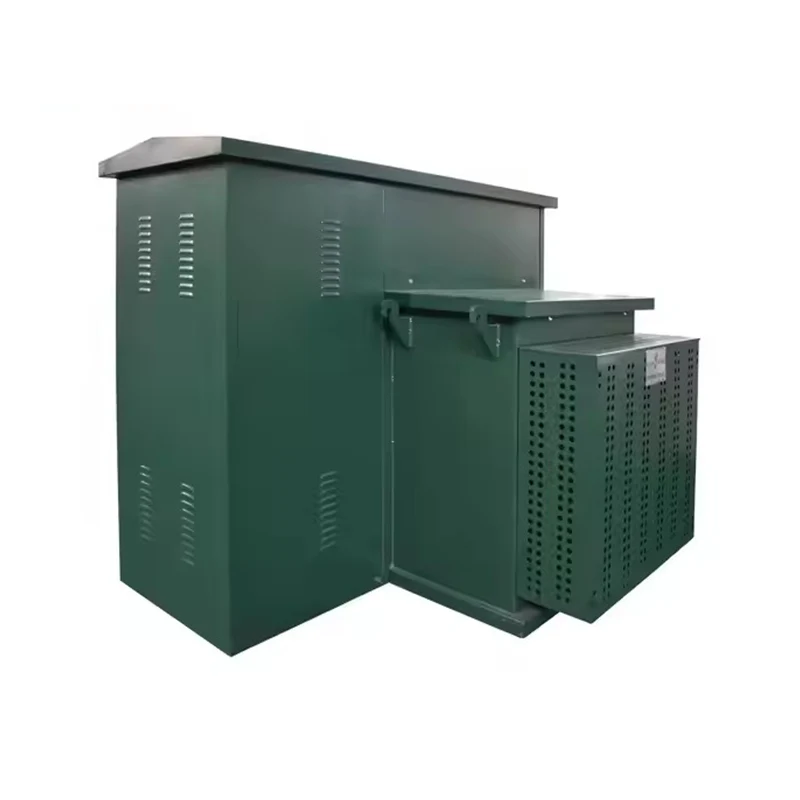

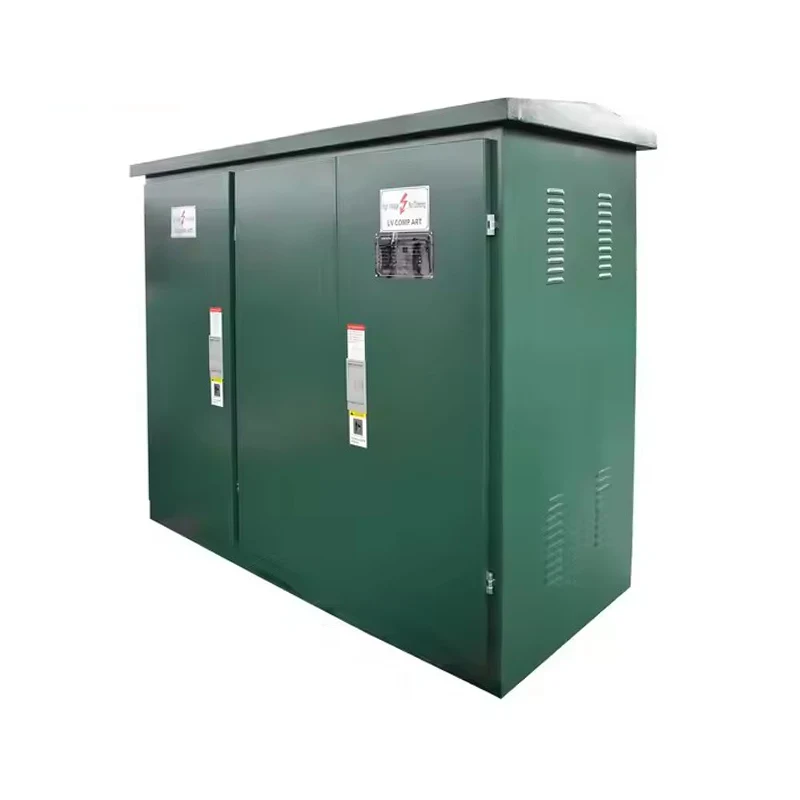

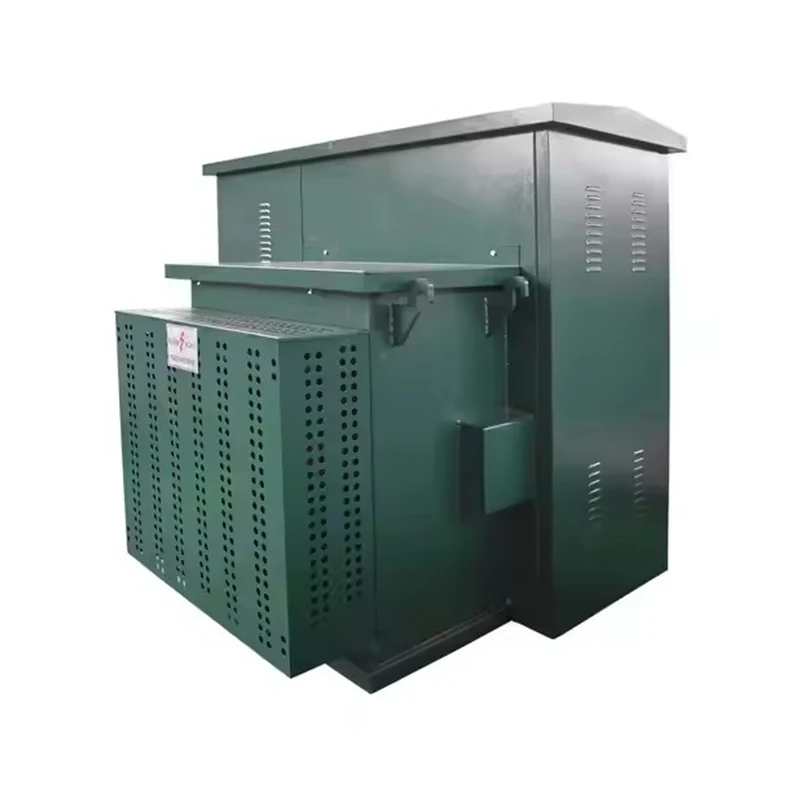

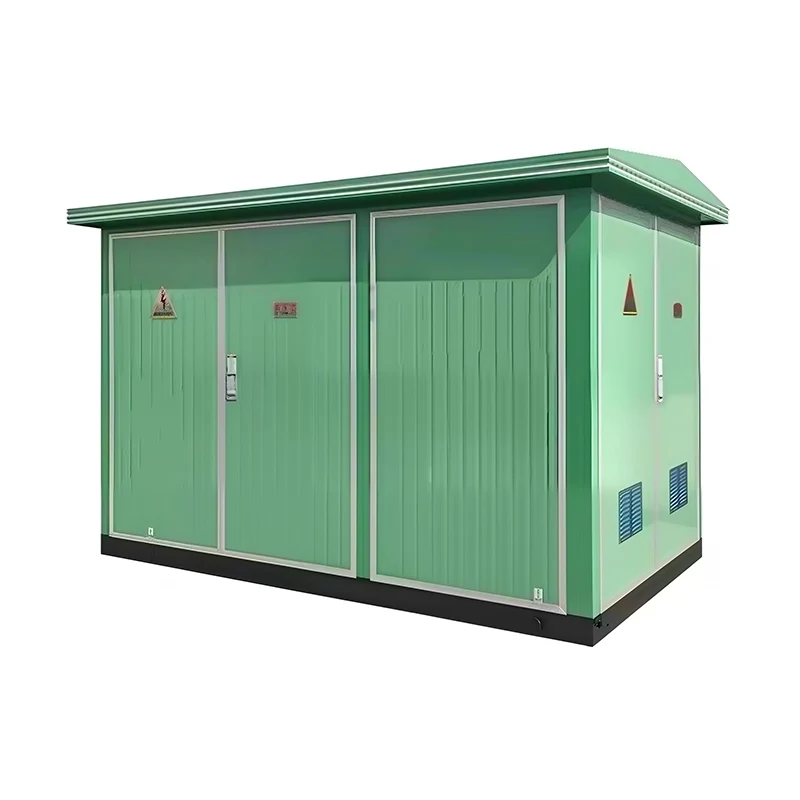

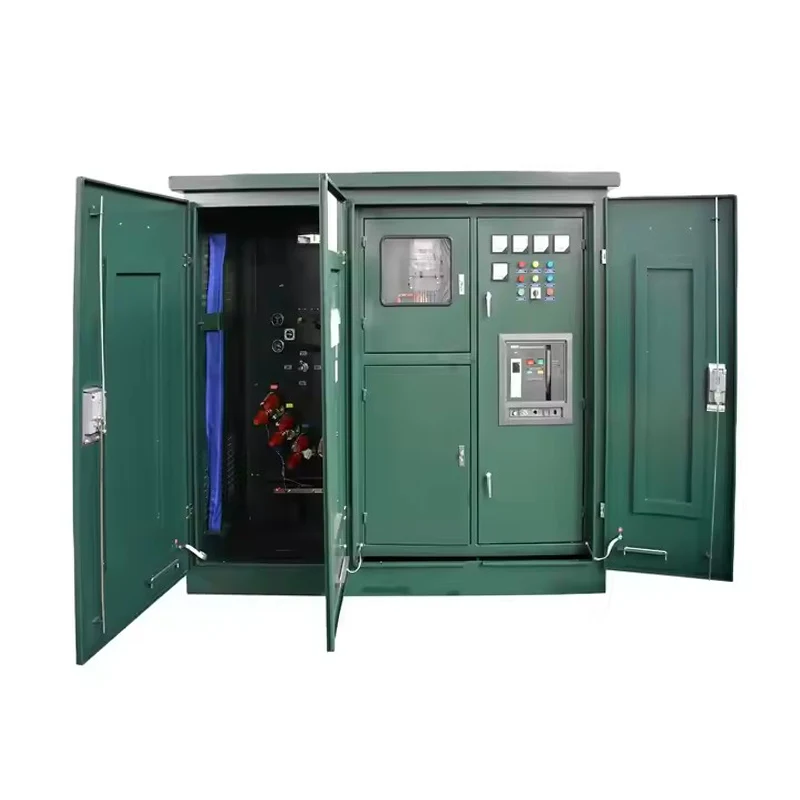

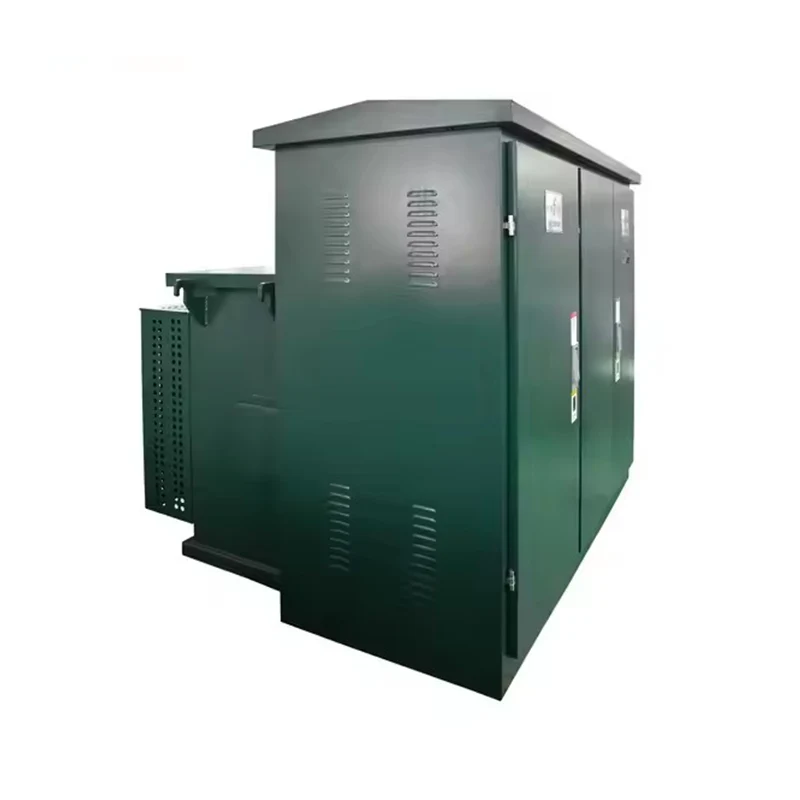

You can rest assured to buy JUCEG YBW 35 Environmentally Friendly Combined Substation from our factory.The Environmentally Friendly Combined Substation has the characteristics of strong set-up capability, small size, compact structure, high reliability, low on-site installation workload, convenient installation and short installation cycle, as well as the feature of being movable. By appropriately changing its shape and color to adapt to the environment, it can also play a role in beautifying the environment. YBW 35 Environmentally Friendly Combined Substation is currently a substitute product for rural and urban civil construction substations and a complete set of equipment for urban power grid construction and renovation.
|
Parameter |
Value |
|
Rated Voltage |
35kV (Max working voltage: 40.5kV) |
|
Rated Capacity |
30–2000 kVA |
|
Tap Range |
±2×2.5% or ±5% |
|
Connection Group |
Yyn0 or Dyn11 |
|
Impedance Voltage |
4%, 4.5%, 6%, or 8% |
|
Protection Class |
HV/LV rooms: IP33; Transformer room: IP23 |
|
Noise Level |
≤50 dB |
|
Operating Altitude |
≤1000m |
|
Ambient Temperature |
-25°C to +40°C |
Customizable appearance: The exterior color and shape of YBW 35 Environmentally Friendly Combined Substation can be modified to blend in with the surrounding environment and enhance the landscape aesthetics
Material selection: JUCEG brand’Combined Substation enclosure offers options such as anodized aluminum alloy (corrosion-resistant), phosphated steel plate, or a composite color steel plate with heat insulation and flame retardant properties, and it has UV protection
Natural ventilation: The transformer compartment utilizes natural air flow and can be optionally equipped with a forced air cooling system triggered by temperature sensors
Ultraviolet protection coating: Ensures a lifespan of ≥ 20 years with extremely low maintenance requirements.
The YBW-35 is designed as a complete outdoor power transformation and distribution system rated for 35kV networks. YBW 35 Environmentally Friendly Combined Substation serves as an ideal replacement for traditional civil-construction substations in urban and rural grid construction projects due to its compact footprint—typically occupying only 1/10 to 1/5 of the area required by conventional substations with equivalent capacity.
|
Compartment |
Key Features |
|
HV Switch Room |
Houses JYN1-35 or KYN10-35 switchgear, or 35kV load switches. Supports both overhead and cable entry/exit configurations |
|
Transformer Room |
Accommodates oil-immersed (S11/S13 series) or dry-type (SCB10/SCB11) transformers. Features an open structure with safety mesh covering instead of fully enclosed housing to optimize ventilation and heat dissipation while ensuring personnel safety |
|
LV Switch Room |
Configurable for 10kV output (with XGN2-12, KYN1-12 switchgear) or 0.4kV output (with DW15T, ME, M-series, or CM-series circuit breakers) |
|
Relay Protection Room |
Contains AC/DC panels, signal panels, protection panels, RTU (remote terminal units), and fiber optic terminals. Supports both conventional relay protection and microprocessor-based integrated automation systems |
l Altitude: not more than 2000 meters;
l Ambient temperature: +40°C-25°C:
l Relative humidity: the daily average does not exceed 95%, the monthly average does not exceed 90%;
l Seismic intensity: no frequently violent vibration and shock;in installation environment. outdoor. installed in a place without fire. explosion danger, no serous pollution, corrosive gas and dust. no violent impact;
Note: If out of above conditions, please negotiate with us.
The YBW-35 environmentally friendly combined substation has a small， a short manufacturing cycle, and low manufacturing costs， significantly reducing construction expenses. The equipment features automatic adjustment capabilities， which can automatically adjust the operating status according to actual load conditions, improving power supply quality and reliability. Advanced power electronics technology and intelligent control systems reduce losses during power conversion and distribution, enhancing energy utilization efficiency. The YBW 35 Environmentally Friendly Combined Substation structure is compact, facilitating installation and maintenance, and reducing operation and maintenance costs.
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
