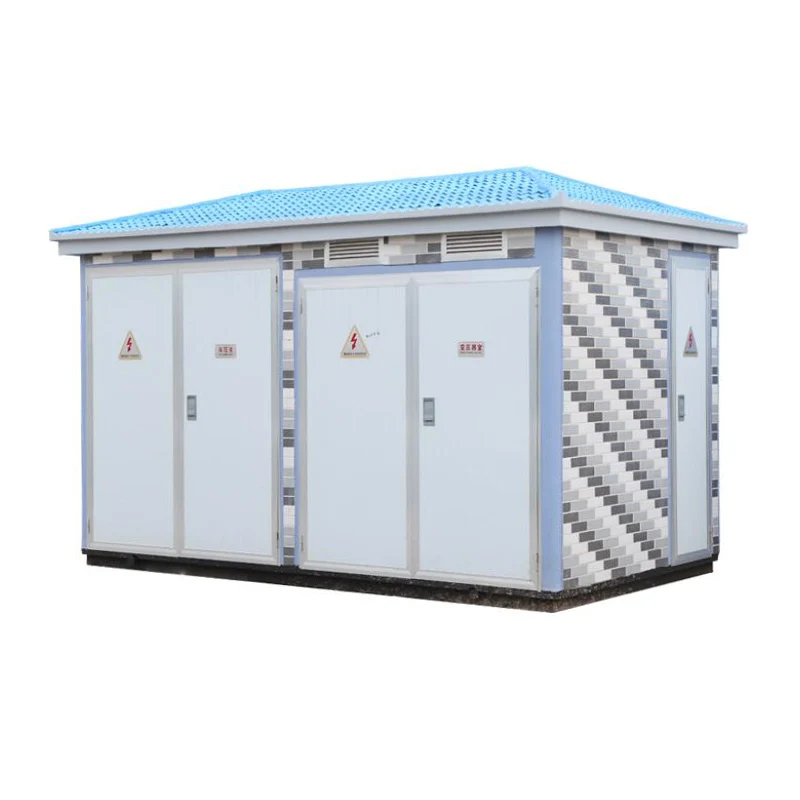

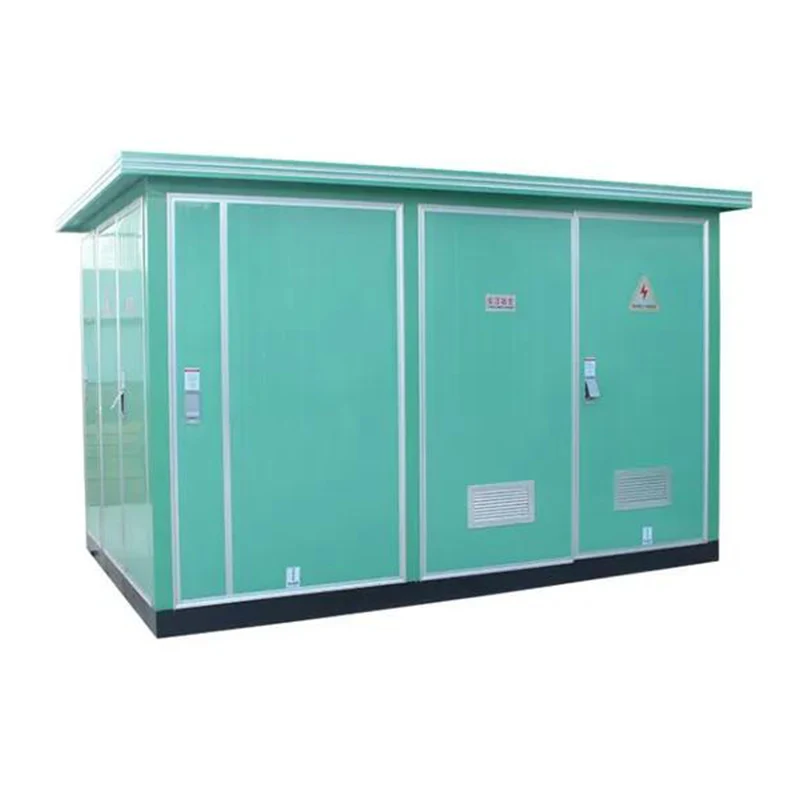

YBW 15kV Outdoor European Prefabricated Substation

JUCEG is a manufacturer and supplier specializing in supplying YBW 15kV Outdoor European Prefabricated Substation.This product features strong set-up capability, small size, compact structure, safe and reliable operation, convenient maintenance, and portability. Its floor area is only 1/10 - 1/5 of that of a conventional civil-built substation of the same capacity, significantly reducing construction costs. YBW 15kV Outdoor European Prefabricated Substation can be used in ring network distribution systems in the power distribution system, as well as in dual-power or radial terminal distribution systems. The shell material of this product is made of composite plates and steel plates, and it is currently the preferred new complete set equipment for the construction and renovation of substations in urban and rural areas.

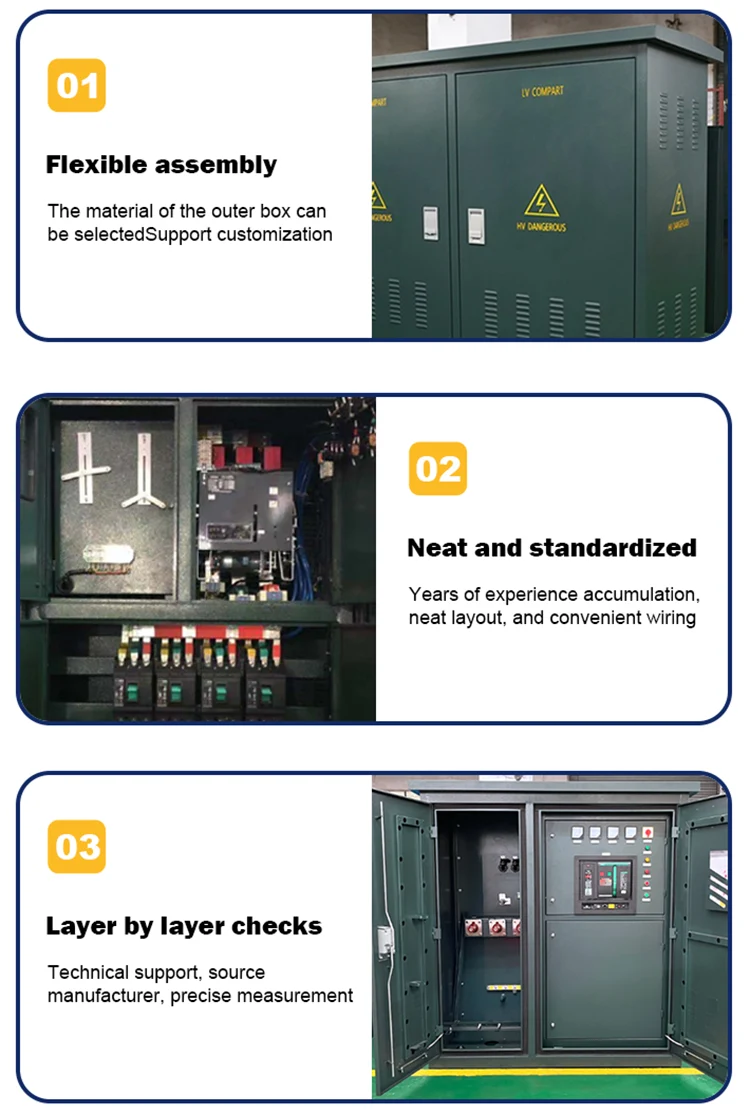

The high-voltage room, transformer room and low-voltage room are independently separated, facilitating maintenance and expansion. Compared with traditional substations, the compact design reduces the floor area by 50% to 80%, making it suitable for scenarios with limited urban space. The outer shell of YBW 15kV Outdoor European Prefabricated Substation is made of galvanized steel plate with anti-corrosion coating, with a protection level of IP33-IP54, capable of resisting rain, snow, dust and ultraviolet radiation. Through optimizing the heat dissipation air duct and noise reduction materials, the operating noise is lower than 55 dB, meeting the environmental protection requirements of residential areas.

Environment Condition:

1. Ambient air temperature: -5~+40 and the average temperature should not exceed +35 in 24h.

2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.

3. Relative humidity should not exceed 50% at max temperature +40. Higher relative humidity is allowed at lower temperature. Ex.

90% at +20. But in view of the temperature change, it is possible that moderate dews will produce casually.

4. Installation gradient not exceed 5.

5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.

6. Any specific requirement, consult with manufactory.
